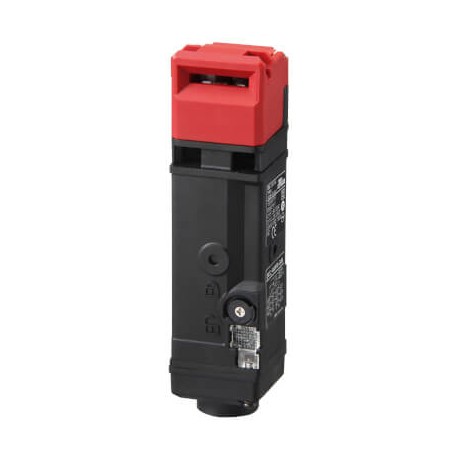

OMRON D4SL-N4GFA-D D4SL-N4GFA-D D4SL2177R D4SLN4GFAD OMRON Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4GFA-D D4SL2177R D4SLN4GFAD OMRON Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic ..

D4SL-N4GFA-D

D4SL2177R

D4SLN4GFAD

OMRON

1 Pcs.

Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 3NC + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Mechanical locking 3nc contact forms + 1NC/1NO IP67 M20 LED Plastic serves as an advanced safety interlock switch built to secure protective access panels on industrial machinery. This switch category is commonly utilized in automated production lines to prevent unsafe entry while equipment remains active. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Quick-break switch
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • Type of guard locking (EF012608): Quiescent current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC3Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1Switch actionSlow actionShapeCuboidOverall length of sensor179.9 mmHeight of sensor179.9 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
