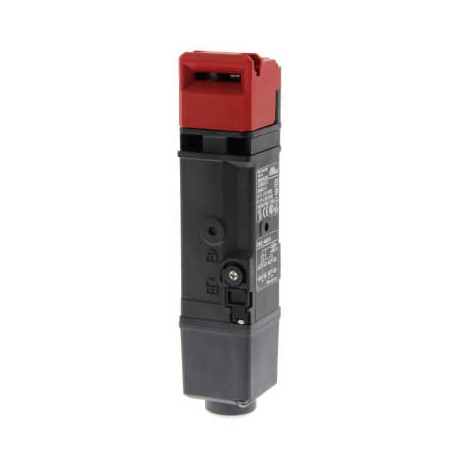

D4SL-N4FFA-D D4SL2169H D4SLN4FFAD OMRON Mechanical lock 2NC/1NO + 2NC IP67 M20 LED Plastic Terminals

D4SL-N4FFA-D

D4SL2169H

D4SLN4FFAD

OMRON

1 Pcs.

Mechanical lock 2NC/1NO + 2NC IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 2NC/1NO + 2NC, head: resin, Mechanical lock/24VDC solenoid release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron D4SL-N4FFA-D mechanical lock safety door switch is engineered to secure industrial machine guards and restrict operator access to hazardous zones until motion ceases. Safety interlock switches of this type prevent accidental startup of automated systems by reliably monitoring the position of physical barriers in manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 4
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
