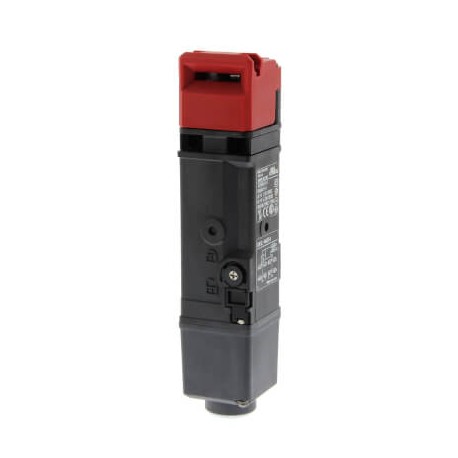

OMRON D4SL-N4EFG-D D4SL-N4EFG-D D4SL2165E D4SLN4EFGD OMRON Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4EFG-D D4SL2165E D4SLN4EFGD OMRON Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Plastic Terminals

D4SL-N4EFG-D

D4SL2165E

D4SLN4EFGD

OMRON

1 Pcs.

Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 2NC/1NO + 1NC/1NO, head: resin, 24VDC solenoid lock/mechanical release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number D4SL-N4EFG-D is a guard lock safety-door switch configured with resin head construction, plastic housing, and 24VDC solenoid lock functionality. Automated production lines utilize these interlocks to maintain strict safety standards on movable machine guards. Pricing, product availability, and delivery schedules are confirmed per enquiry through an official RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: D4SL-N4EFG-D
  • Catalogue code: D4SL2165E
  • Door switch type: Key-operated
  • Guard-lock: Yes
  • Material housing: Plastic
  • Material head: Resin
  • Ambient temperature (operating): -10-55 °C
  • Holding force: 1300 N
  • Direction of operation: Adjustable
  • Door contacts NC: 2
  • Door contacts NO: 1

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)
