D4SL-N4EFA-D4

D4SL2163R

D4SLN4EFAD4

OMRON

1 Pcs.

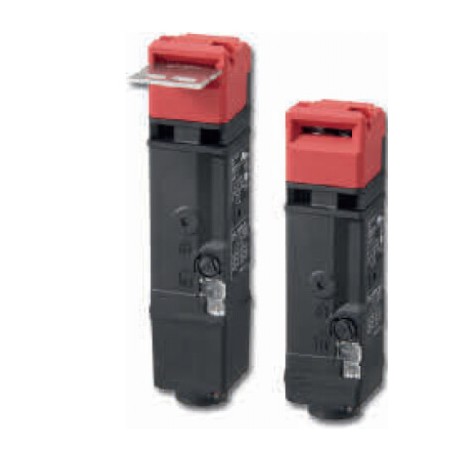

Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Plastic Terminals special Key Door locking switch, M20, 2NC/1NO + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release, LED indicator, special release key

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Specifications

Guard-lock
Material headResin
Ambient temperature (operating)-10-55 °C
Holding force1300 N
Direction of operationAdjustable
Door contacts NC2
Door contacts NO1
Lock monitor contacts NC1
Lock monitor contacts NO1
Lock typeMechanical
Release typeSolenoid
Lock/Release key typeSpecial key
Lock/Release key positionFront + Back
Lock/Release key materialResin
Solenoid voltage24 V
With LED indicator
Connection methodTerminal block
Cable length0 m
Degree of protection (IP)IP67
Conduit sizeM20
Number of conduits1
ShapeCuboid
Overall length179.9 mm
Height of sensor39 mm
Width sensor39 mm

Accessories

D4SL-CN10Guard lock safety-door switch accessory, D4SL-N, connector cable 10 m
D4SL-CN3Guard lock safety-door switch accessory, D4SL-N, connector cable 3m
D4SL-CN5Guard lock safety-door switch accessory, D4SL-N, connector cable 5m
D4SL-NK1Guard lock safety-door switch accessory, D4SL-N, operation key: horizontal mounting
D4SL-NK1GGuard lock safety-door switch accessory, D4SL-N, operation key: horizontal mounting, cushion rubber
D4SL-NK1SGuard lock safety-door switch accessory, D4SL-N, operation key: horizontal mounting, no cushion rubber (short type)
D4SL-NK2Guard lock safety-door switch accessory, D4SL-N, operation key: vertical mounting
D4SL-NK2GGuard lock safety-door switch accessory, D4SL-N, operation key: vertical mounting, cushion rubber
D4SL-NK3Guard lock safety-door switch accessory, D4SL-N, operation key: adjustable mounting (horizontal)
D4SL-NK5Guard lock safety-door switch accessory, D4SL-N, operation key: adjustable (horizontal/vertical)

ETIM for 382665 Sensors (EC002593)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Cuboid
Degree of protection (NEMA) (EF011959) 4X
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP67
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Cable entry metrical
Type of interface (EF006977) None
Explosion safety category for gas (EF003997) None
With auxiliary release (EF011964) Yes
With status indication (EF001602) Yes
Suitable for safety functions (EF001597) Yes
With escape release (EF007172) Yes
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 2
Guard locking force (EF007552) 1300 N
Rated operation current Ie at DC-13, 125 V (EF007085) 0.22 A
Number of safety auxiliary contacts (EF006940) 0
Number of contacts as normally closed contact (EF008255) 3
Rated operation current Ie at AC-15, 125 V (EF007082) 1.5 A
Width sensor (EF007094) 39 mm
Height of sensor (EF007283) 39 mm
Length of sensor (EF007334) 179.9 mm
Ambient temperature during operating (EF007515) -10 °C
Rated control supply voltage magnet drive DC (EF007070) 20.4 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
