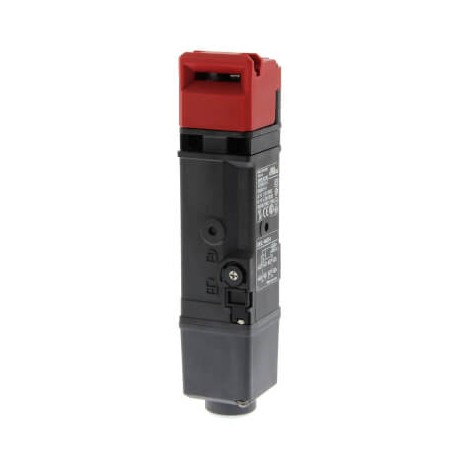

D4SL-N4EFA-D D4SL2161B D4SLN4EFAD OMRON Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Plastic Terminals
D4SL-N4EFA-D
D4SL2161B
D4SLN4EFAD
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron Mechanical lock (D4SL-N4EFA-D) is an engineered safety interlock switch designed to hold access doors closed during dangerous automated processes. These locking mechanisms are essential parts of machine safety loops, ensuring operators cannot open enclosures until internal equipment comes to a complete stop.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (NEMA) (EF011959): 4X
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry metrical
- Housing material (EF001596): Plastic
- With auxiliary release (EF011964): Yes
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 3
- Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A
