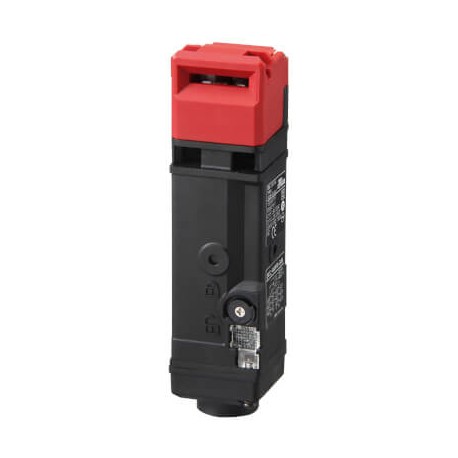

OMRON D4SL-N4EDG-DN D4SL-N4EDG-DN D4SL2461A D4SLN4EDGDN OMRON Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4EDG-DN D4SL2461A D4SLN4EDGDN OMRON Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Connector

D4SL-N4EDG-DN

D4SL2461A

D4SLN4EDGDN

OMRON

1 Pcs.

Lock solenoid 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Connector Door locking switch, M20, 2NC/1NO + 1NC/1NO, head: metal, 24VDC solenoid lock/mechanical release, LED indicator, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Lock solenoid (D4SL-N4EDG-DN) functions as a safety door interlock, designed to keep protective machine guards securely locked while automated processes are running. They are widely integrated into industrial control systems to protect operators by preventing access to dangerous areas until internal machinery has safely stopped.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • Type of guard locking (EF012608): Operating current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 3

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
