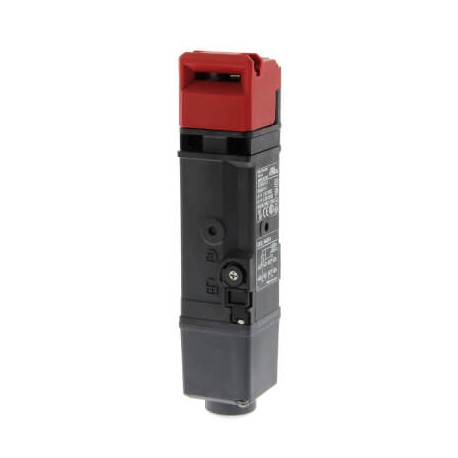

OMRON D4SL-N4EDA-D D4SL-N4EDA-D D4SL2454R D4SLN4EDAD OMRON Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4EDA-D D4SL2454R D4SLN4EDAD OMRON Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Terminals

D4SL-N4EDA-D

D4SL2454R

D4SLN4EDAD

OMRON

1 Pcs.

Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Terminals Door locking switch, M20, 2NC/1NO + 1NC/1NO, head: metal, Mechanical lock/24VDC solenoid release, LED indicator

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built for rigorous plant environments, this Omron D4SL-N4EDA-D D4SL2454R D4SLN4EDAD OMRON Mechanical lock 2NC/1NO + 1NC/1NO IP67 M20 LED Metal Terminals functions as a safety guard interlock to restrict access to hazardous machinery zones. These switches integrate into safety logic to stop operations instantly if a barrier is breached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Housing material (EF001596): Plastic
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 3
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headMetalAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor179.9 mmHeight of sensor39 mmWidth of sensor39 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
