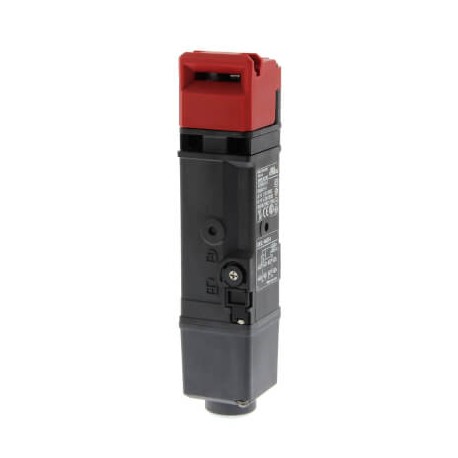

OMRON D4SL-N4CFG D4SL-N4CFG D4SL2091H D4SLN4CFG OMRON Lock solenoid 2NC + 1NC/1NO IP67 M20 Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4CFG D4SL2091H D4SLN4CFG OMRON Lock solenoid 2NC + 1NC/1NO IP67 M20 Plastic Terminals

D4SL-N4CFG

D4SL2091H

D4SLN4CFG

OMRON

1 Pcs.

Lock solenoid 2NC + 1NC/1NO IP67 M20 Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 2NC + 1NC/1NO, head: resin, 24VDC solenoid lock/mechanical release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4SL-N4CFG guard lock safety-door switch features a resin head, M20 conduit entry, and 24VDC solenoid locking to protect machine operators. Safety switches of this style are integral to interlocking enclosure doors across diverse industrial automation environments.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: D4SL-N4CFG
  • Catalogue code: D4SL2091H
  • Catalogue title: D4SL-N4CFG D4SL2091H D4SLN4CFG OMRON Lock solenoid 2NC + 1NC/1NO IP67 M20 Plastic Terminals
  • Product description: Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO0Lock monitor con

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to lock (Solenoid lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
