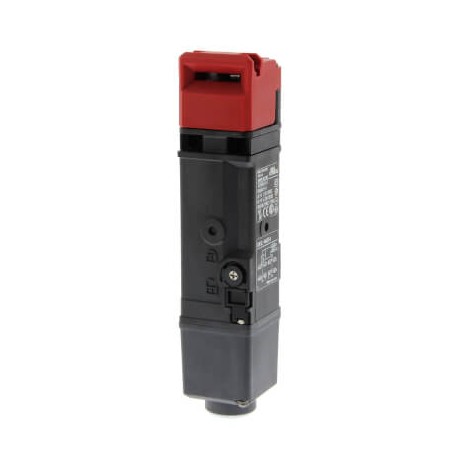

OMRON D4SL-N4CFA D4SL-N4CFA D4SL2089F D4SLN4CFA OMRON Mechanical lock 2NC + 1NC/1NO IP67 M20 Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4CFA D4SL2089F D4SLN4CFA OMRON Mechanical lock 2NC + 1NC/1NO IP67 M20 Plastic Terminals

D4SL-N4CFA

D4SL2089F

D4SLN4CFA

OMRON

1 Pcs.

Mechanical lock 2NC + 1NC/1NO IP67 M20 Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 2NC + 1NC/1NO, head: resin, Mechanical lock/24VDC solenoid release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron mechanical lock, part number D4SL-N4CFA, is designed to secure machine guards and access doors in industrial safety circuits, preventing machinery operation while gates remain open. Safety switches of this type help protect personnel by interlocking hazardous areas with machine control architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Quiescent current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to unlock (Mechanical lock)
