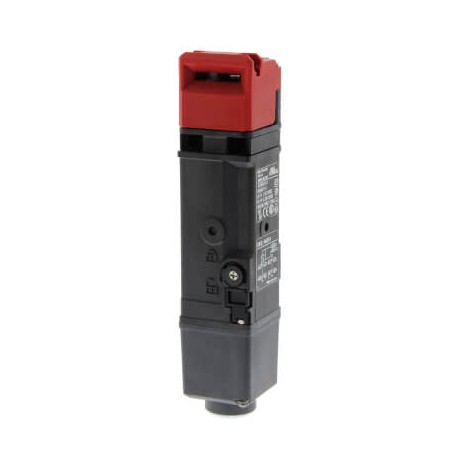

OMRON D4SL-N4AFG D4SL-N4AFG D4SL2083G D4SLN4AFG OMRON Lock solenoid 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4AFG D4SL2083G D4SLN4AFG OMRON Lock solenoid 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals

D4SL-N4AFG

D4SL2083G

D4SLN4AFG

OMRON

1 Pcs.

Lock solenoid 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 1NC/1NO + 1NC/1NO, head: resin, 24VDC solenoid lock/mechanical release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for industrial safety engineering, the Omron D4SL-N4AFG lock solenoid secures protective doors and enclosure panels on automated manufacturing systems. This type of component ensures that dangerous machine motions remain isolated until operators can safely enter the work area. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • Type of guard locking (EF012608): Operating current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 2
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC1Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to lock (Solenoid lock)
