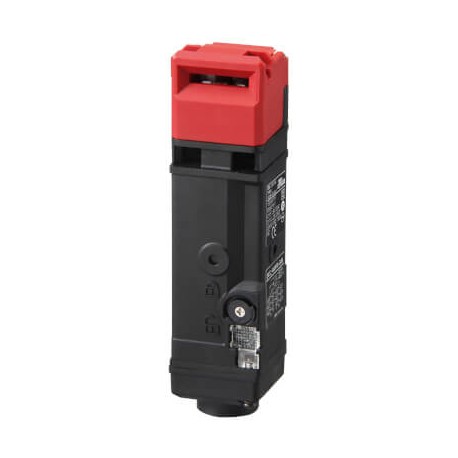

D4SL-N4AFA-N D4SL2082R D4SLN4AFAN OMRON Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Connector
D4SL-N4AFA-N
D4SL2082R
D4SLN4AFAN
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A mechanical lock device such as the Omron D4SL-N4AFA-N is deployed on machine guards to prevent hazardous access during active processing sequences. These safety switches play a critical role in industrial automation by interlocking barrier doors with machine power controls. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (NEMA) (EF011959): 4X
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry metrical
- Housing material (EF001596): Plastic
- Type of guard locking (EF012608): Quiescent current principle
- With auxiliary release (EF011964): Yes
- With status indication (EF001602): No
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 2
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
- Number of safety auxiliary contacts (EF006940): 0
- Number of contacts as normally closed contact (EF008255): 2
