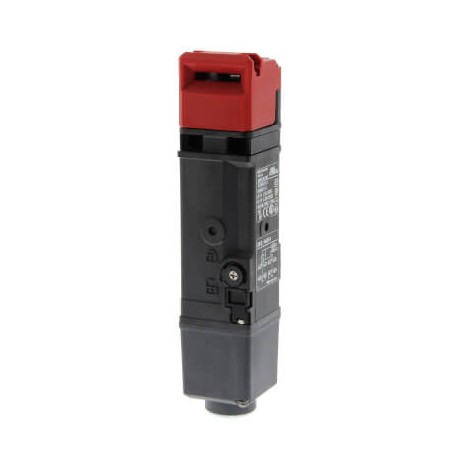

OMRON D4SL-N4AFA D4SL-N4AFA D4SL2081M D4SLN4AFA OMRON Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N4AFA D4SL2081M D4SLN4AFA OMRON Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals

D4SL-N4AFA

D4SL2081M

D4SLN4AFA

OMRON

1 Pcs.

Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 1NC/1NO + 1NC/1NO, head: resin, mechanical lock/24VDC solenoid release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number D4SL-N4AFA is a mechanical lock safety-door switch used to secure industrial machine guards and restrict operator access during hazardous operations. Such switches are typically installed on access doors of automated cells to ensure machinery cannot operate while guards are open.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Omron
  • Manufacturer part number: D4SL-N4AFA
  • Catalogue code: D4SL2081M
  • Catalogue title: D4SL-N4AFA D4SL2081M D4SLN4AFA OMRON Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals
  • Product description: Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC1Door contacts NO1Lock monitor con
  • Manufacturer summary: Mechanical lock 1NC/1NO + 1NC/1NO IP67 M20 Plastic Terminals Guard lock safety-door switch, D4SL-N, M20, 1NC/1NO + 1NC/1NO, head: resin, mechanical lock/24VDC solenoid release

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC1Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeM20Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to unlock (Mechanical lock)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
