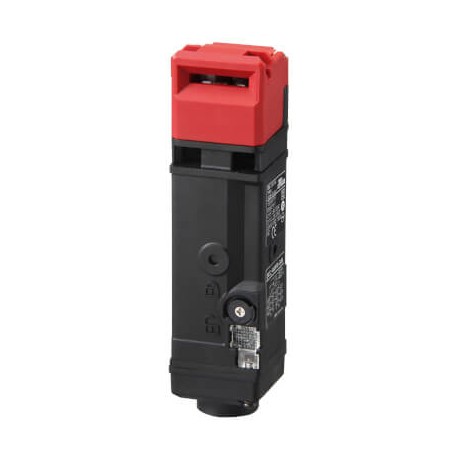

OMRON D4SL-N2NFG-DN D4SL-N2NFG-DN D4SL2198A D4SLN2NFGDN OMRON Lock solenoid 2NC/1NO + 2NC/1NO IP67 G1/2 LED Plást.Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4SL-N2NFG-DN D4SL2198A D4SLN2NFGDN OMRON Lock solenoid 2NC/1NO + 2NC/1NO IP67 G1/2 LED Plást.Connector

D4SL-N2NFG-DN

D4SL2198A

D4SLN2NFGDN

OMRON

1 Pcs.

Lock solenoid 2NC/1NO + 2NC/1NO IP67 G1/2 LED Plást.Connector Guard lock safety door switch, G1/2 coduit, 2NC/1NO+2NC/1NO, resin head, solenoid lock, connector

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4SL-N2NFG-DN Lock solenoid is a compact cuboid safety interlock switch designed for integration into industrial automation guarding systems to restrict access to hazardous zones. These switches ensure that heavy machinery halts before any protective barrier can be opened by operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (NEMA) (EF011959): 4X
  • Degree of protection (IP) (EF005474): IP67
  • Type of guard locking (EF012608): Operating current principle
  • With auxiliary release (EF011964): Yes
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.22 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 4
  • Rated operation current Ie at AC-15, 125 V (EF007082): 1.5 A
  • Width sensor (EF007094): 39 mm

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headResinAmbient temperature (operating)-10-55 °CHolding force1300 NDirection of operationAdjustableDoor contacts NC2Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionFront + BackLock/Release key materialMetalSolenoid voltage24 VLED indicatorConnection methodSystem connectorCable length0 mDegree of protection (IP)IP67Conduit sizeG1/2Number of conduits1ShapeCuboidOverall length of sensor155 mmHeight of sensor39 mmWidth of sensor39 mmLock/Release logicPower to lock (Solenoid lock)
