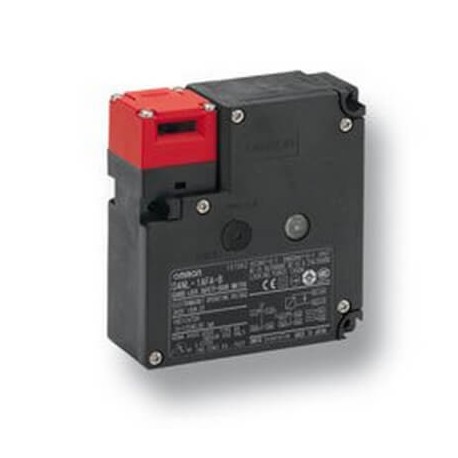

OMRON D4NL-4GFA-B D4NL-4GFA-B D4NL0021G D4NL4GFAB OMRON Lock makan desert/Opening solen. 24vdc 3nc contact forms+1NC/1NO LED M.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-4GFA-B D4NL0021G D4NL4GFAB OMRON Lock makan desert/Opening solen. 24vdc 3nc contact forms+1NC/1NO LED M..

D4NL-4GFA-B

D4NL0021G

D4NL4GFAB

OMRON

1 Pcs.

Lock makan desert/Opening solen. 24vdc 3nc contact forms+1NC/1NO LED M20 Guard lock safety-door switch, D4NL, M20, 3NC + 1NC/1NO (slow-action), head: plastic, mechanical lock/24-VDC solenoid release, 10 to 115 VAC/VDC LED i

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC3Door contacts NO0Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeStandard keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeM20Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
ETIM for 133806 Sensors (EC002593)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Construction type housing (EF004008) Special construction
Type of switching contact (EF003591) Slow-action switch
Degree of protection (NEMA) (EF011959) Other
Coating housing (EF001601) Other
Degree of protection (IP) (EF005474) IP67
Type of interface for safety communication (EF003956) None
Type of electric connection (EF003961) Cable entry metrical
Type of interface (EF006977) None
Housing material (EF001596) Other
Type of guard locking (EF012608) Quiescent current principle
Explosion safety category for gas (EF003997) None
With status indication (EF001602) Yes
Suitable for safety functions (EF001597) Yes
With escape release (EF007172) Yes
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Guard locking force (EF007552) 1300 N
Rated operation current Ie at AC-15, 230 V (EF001385) 0 A
Rated operation current Ie at DC-13, 125 V (EF007085) 0.27 A
Number of safety auxiliary contacts (EF006940) 0
Rated operation current Ie at DC-13, 24 V (EF007087) 0 A
Rated operation current Ie at DC-13, 230 V (EF001386) 0 A
Number of contacts as normally closed contact (EF008255) 4
Rated operation current Ie at AC-15, 125 V (EF007082) 3 A
Width sensor (EF007094) 88.5 mm
Rated operation current Ie at AC-15, 24 V (EF007084) 0 A
Height of sensor (EF007283) 35.5 mm
Length of sensor (EF007334) 95 mm
Ambient temperature during operating (EF007515) -10 °C
Rated control supply voltage magnet drive DC (EF007070) 20.4 V
