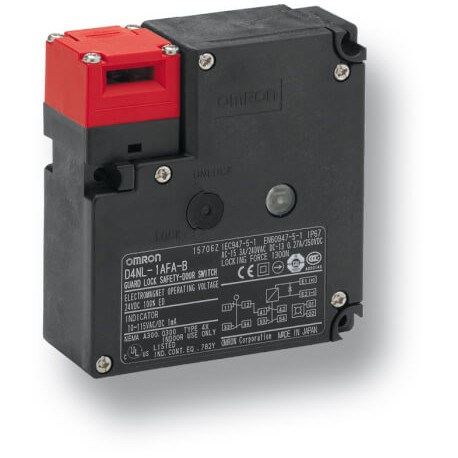

OMRON D4NL-4FFG-B4 D4NL-4FFG-B4 D4NL0090M D4NL4FFGB4 OMRON Lock solen.24vdc/Opening mechanisms. 2NC/1NO+2NC LED M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-4FFG-B4 D4NL0090M D4NL4FFGB4 OMRON Lock solen.24vdc/Opening mechanisms. 2NC/1NO+2NC LED M20

D4NL-4FFG-B4

D4NL0090M

D4NL4FFGB4

OMRON

1 Pcs.

Lock solen.24vdc/Opening mechanisms. 2NC/1NO+2NC LED M20 Locking solen.24Vdc/Opening mecan. 2NC/1NA+2NC LED M20 Guard lock safety-door switch, D4NL, Special Release Key, Solenoid Lock/Mechanical Release, M20

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron lock solenoid safety switch D4NL-4FFG-B4 serves as a vital safeguard in industrial automation, preventing unauthorized or accidental entry into active machinery enclosures. These electromechanical interlocks hold access doors securely shut during hazardous operations and communicate status updates directly to safety controllers.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 4

More info

▲
  • Safety door switch with electromagnetic lock or unlock mechanism
  • Models with four or five built-in contacts
  • Strong key holding force: 1300N
  • For standard loads and micro loads
  • Keys are compatible with D4GL and D4NS
