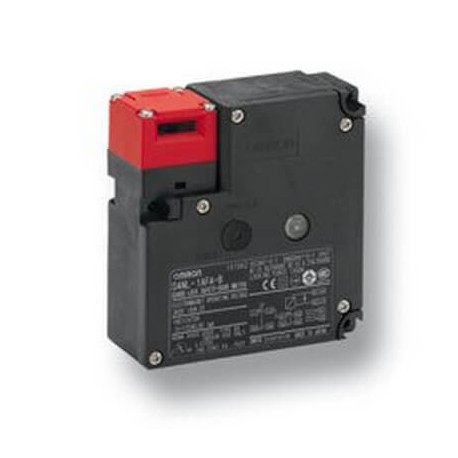

D4NL-4FFG-B D4NL0042M D4NL4FFGB OMRON Lock solen 24vdc/Opening mechanisms. 2NC/1NO + 2NC LED M20
D4NL-4FFG-B
D4NL0042M
D4NL4FFGB
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron lock solen 24vdc/opening mechanisms safety switch acts as an electromagnetic guard locking device to restrict entry to dangerous automated zones. Plant safety engineers rely on these components to prevent accidental access while automated machinery operates.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Special construction
- Type of switching contact (EF003591): Slow-action switch
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry metrical
- Type of guard locking (EF012608): Operating current principle
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
