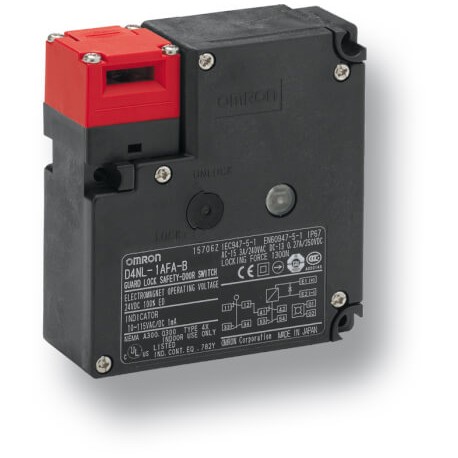

OMRON D4NL-4AFA-BS D4NL-4AFA-BS D4NL0343G D4NL4AFABS OMRON Lock makan desert/Opening solen.24vdc Front 1NC/1NO+1NC/1NO M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-4AFA-BS D4NL0343G D4NL4AFABS OMRON Lock makan desert/Opening solen.24vdc Front 1NC/1NO+1NC/1NO M20

D4NL-4AFA-BS

D4NL0343G

D4NL4AFABS

OMRON

1 Pcs.

Lock makan desert/Opening solen.24vdc Front 1NC/1NO+1NC/1NO M20 Locking /Opening solen.24Vcc Front 1NC/1NA+1NC/1NA M20 Safety door-lock switch, M20 entry, 1NC/1NO + 1NC/1NO, mechanical lock, 24 VDC, Front key release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Lock makan desert/Opening solen.24vdc Front 1NC/1NO+1NC/1NO M20 functions as a safety door-lock switch, commonly used to prevent access to hazardous machinery while processes are active. These electromechanical interlocks secure protective guards and release only when conditions permit safe entry. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry metrical
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2

More info

▲
  • Safety door switch with electromagnetic lock or unlock mechanism
  • Models with four or five built-in contacts
  • Strong key holding force: 1300N
  • For standard loads and micro loads
  • Keys are compatible with D4GL and D4NS
