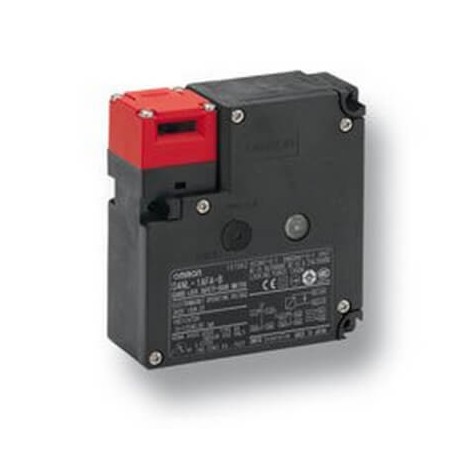

OMRON D4NL-2FFA-B4S D4NL-2FFA-B4S D4NL0338M D4NL2FFAB4S OMRON Lock makan desert/Opening solen.24vdc 2NC/1NO+2NC LED G1/2 Front View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-2FFA-B4S D4NL0338M D4NL2FFAB4S OMRON Lock makan desert/Opening solen.24vdc 2NC/1NO+2NC LED G1/2 Front

D4NL-2FFA-B4S

D4NL0338M

D4NL2FFAB4S

OMRON

1 Pcs.

Lock makan desert/Opening solen.24vdc 2NC/1NO+2NC LED G1/2 Front Safety door-lock switch, G1/2 entry, 2NC/1NO + 2NC, mechanical lock, 24 VDC, Front key release

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Lock makan desert/Opening solen.24vdc 2NC/1NO+2NC LED G1/2 Front (D4NL-2FFA-B4S) serves as a reliable safety interlock switch designed for integration into machine safeguarding architectures.

These position switches are commonly deployed on hinged or sliding safety guards to verify closure and lock out hazardous operations until spindles or drives come to a complete halt. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 4
  • Rated operation current Ie at AC-15, 125 V (EF007082): 3 A

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodTerminal blockCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC2Door contacts NO1Lock monitor contacts NC2Lock monitor contacts NO0Lock/Release key typeSpecial keyLock/Release key positionFrontLock/Release key materialMetalSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeG1/2Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor35.5 mmHeight of sensor95 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
