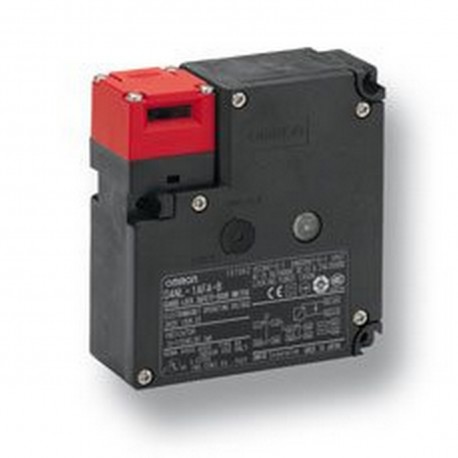

OMRON D4NL-2AFA-B4 D4NL-2AFA-B4 D4NL0050M D4NL2AFAB4 OMRON Caps lock mec/Opening solen.24vdc 1NC/1NO+1NC/1NO LED G1/2 Key esp View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-2AFA-B4 D4NL0050M D4NL2AFAB4 OMRON Caps lock mec/Opening solen.24vdc 1NC/1NO+1NC/1NO LED G1/2 Key esp

D4NL-2AFA-B4

D4NL0050M

D4NL2AFAB4

OMRON

1 Pcs.

Caps lock mec/Opening solen.24vdc 1NC/1NO+1NC/1NO LED G1/2 Key esp Safety door-lock switch, mechanical lock, 24 VDC, 1NC/1NO + 1NC/1NO, G1/2 entry Guard lock safety-door switch, mechanical lock, 24 VDC, 1NC/1NO + 1NC/1NO, G1/2 entry

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Automated manufacturing environments utilize safety interlock switches like the Omron D4NL-2AFA-B4 mechanical lock safety door switch to maintain rigorous safety standards around robotic cells and heavy machinery. These devices securely lock access doors while equipment runs and confirm the closed status of protective barriers before permitting machine startup.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of guard locking (EF012608): Quiescent current principle
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Guard locking force (EF007552): 1300 N
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 2

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingPlasticMaterial headPlasticAmbient temperature (operating)-10-55 °CConnection methodScrew terminalCable length0 mDirection of operationAdjustableHolding force1300 NDoor contacts NC1Door contacts NO1Lock monitor contacts NC1Lock monitor contacts NO1Lock/Release key typeSpecial keyLock/Release key positionBottomLock/Release key materialResinSolenoid voltage24 VLED indicatorDegree of protection (IP)IP67Conduit sizeG1/2Number of conduits2Switch actionSlow actionShapeCuboidOverall length of sensor95 mmHeight of sensor35.5 mmWidth of sensor88.5 mmSwitch without actuatorLock/Release logicPower to unlock (Mechanical lock)
