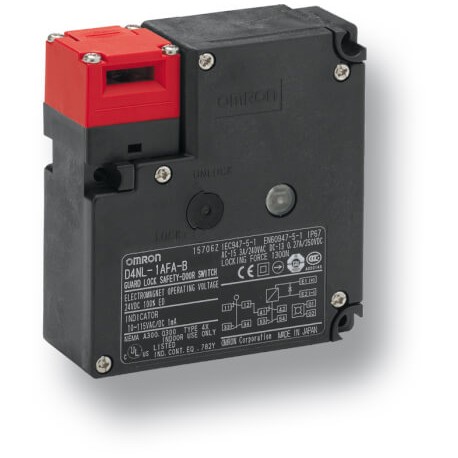

OMRON D4NL-1FFG-B D4NL-1FFG-B D4NL0040C D4NL1FFGB OMRON Lock solen 24vdc/Opening mecan 2NC/1NO+2NC LED PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NL-1FFG-B D4NL0040C D4NL1FFGB OMRON Lock solen 24vdc/Opening mecan 2NC/1NO+2NC LED PG13,5

D4NL-1FFG-B

D4NL0040C

D4NL1FFGB

OMRON

1 Pcs.

Lock solen 24vdc/Opening mecan 2NC/1NO+2NC LED PG13,5 Locking solen 24Vcc/Opening mecan 2NC/1NA+2NC LED PG13.5 Guard lock safety-door switch, D4NL, Standard Release Key, Solenoid Lock/Mechanical Release, Pg13.5

Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron D4NL-1FFG-B lock solenoid is an electro-mechanical safety switch deployed on heavy industrial machine guards to prevent premature opening while internal processes run. It integrates electrical monitoring with mechanical tongue locking to ensure compliance with stringent plant safety regulations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing: Special construction
  • Type of switching contact: Slow-action switch
  • Degree of protection (IP): IP67
  • Type of electric connection: Cable entry PG
  • With status indication: Yes
  • Suitable for safety functions: Yes
  • With escape release: Yes
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Guard locking force: 1300 N
  • Rated operation current Ie at AC-15, 230 V: 0 A
  • Rated operation current Ie at DC-13, 125 V: 0.27 A
  • Number of safety auxiliary contacts: 0
  • Rated operation current Ie at DC-13, 24 V: 0 A
  • Rated operation current Ie at DC-13, 230 V: 0 A
  • Number of contacts as normally closed contact: 4

More info

▲
  • Safety door switch with electromagnetic lock or unlock mechanism
  • Models with four or five built-in contacts
  • Strong key holding force: 1300N
  • For standard loads and micro loads
  • Keys are compatible with D4GL and D4NS

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
