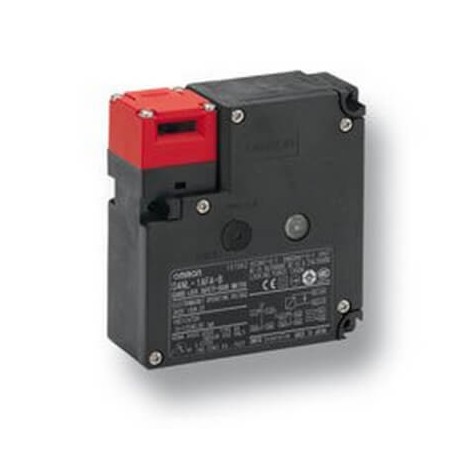

D4NL-1DFA-BS D4NL0098E D4NL1DFABS OMRON Lock solen 24vdc/Opening mecan 2NC+2NC LED PG13,5 Front
D4NL-1DFA-BS
D4NL0098E
D4NL1DFABS
OMRON
1 Pcs.
Automation > Position switch with guard locking
D4DL/DS/DH/DR/GL/NL/NH/NS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial safety circuits rely heavily on devices like the Omron D4NL-1DFA-BS safety solenoid switch to lock and monitor protective doors on automated machinery. These electromechanical components prevent unauthorized entry into hazardous work cells, halting operations immediately if a safety barrier is compromised.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Special construction
- Type of switching contact (EF003591): Slow-action switch
- Degree of protection (IP) (EF005474): IP67
- Type of electric connection (EF003961): Cable entry PG
- Type of guard locking (EF012608): Quiescent current principle
- With status indication (EF001602): Yes
- Suitable for safety functions (EF001597): Yes
- With escape release (EF007172): Yes
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Guard locking force (EF007552): 1300 N
- Rated operation current Ie at AC-15, 230 V (EF001385): 0 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
- Number of safety auxiliary contacts (EF006940): 0
- Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
- Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
