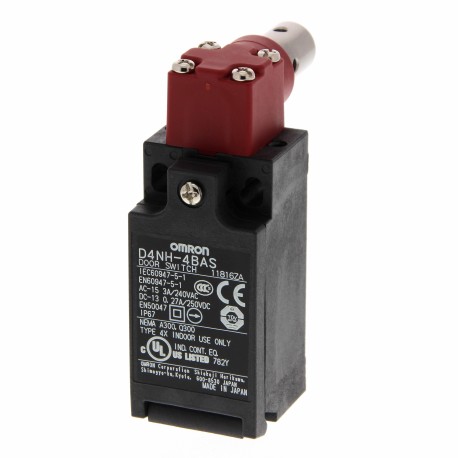

OMRON D4NH-1CAS D4NH-1CAS D4NH0037F D4NH1CAS OMRON Hinge axle Plastic 2NC/1NO Break-slow-PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4NH-1CAS D4NH0037F D4NH1CAS OMRON Hinge axle Plastic 2NC/1NO Break-slow-PG13,5

D4NH-1CAS

D4NH0037F

D4NH1CAS

OMRON

1 Pcs.

Hinge axle Plastic 2NC/1NO Break-slow-PG13,5 Hinge axis Plastic 2NC/1NA Slow break PG13.5 Safety door-hinge switch, Shaft Actuator, PG 13.5 Conduit, 2NC/1NO (slow-action)

Automation > Hinge switch
D4DL/DS/DH/DR/GL/NL/NH/NS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron hinge switch, part number D4NH-1CAS, is an industrial safety interlock designed to monitor movable guards, access doors, and safety enclosures on automated equipment. By integrating into safety chains, it helps ensure that machine operations halt whenever access points are compromised.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Special construction
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of control element (EF006976): Full shaft
  • Type of electric connection (EF003961): Cable entry PG
  • Housing material (EF001596): Plastic
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.27 A
  • Number of safety auxiliary contacts (EF006940): 1
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0.27 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.27 A

More info

▲
  • Direct opening mechanism
  • Shaft or arm lever actuator
  • Wide temperature range
  • Metric conduit and M12 connector types are available
