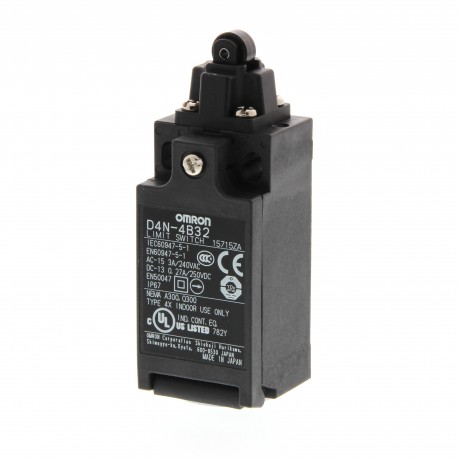

OMRON D4N-4D32 D4N-4D32 D4N 0357C D4N4D32 OMRON Plastic 3nc contact forms Slow Plunger roller plunger M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4D32 D4N 0357C D4N4D32 OMRON Plastic 3nc contact forms Slow Plunger roller plunger M20

D4N-4D32

D4N 0357C

D4N4D32

OMRON

1 Pcs.

Plastic 3nc contact forms Slow Plunger roller plunger M20 Plastic 3NC Slow Roller Plunger M20 Limit switch, Top roller plunger, 3NC (slow-action), 3NC (slow-action), M20 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron plastic limit switch is an industrial component deployed to track machine positioning and travel boundaries by converting mechanical motion into precise electrical signals. These devices protect equipment from overtravel and coordinate sequence timing in automated setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
  • Direct opening mechanism and approval by notified body
  • Rugged plastic housing with double insulation
  • Wide range of actuators
  • M12 connectors or terminal block with M20 conduit
