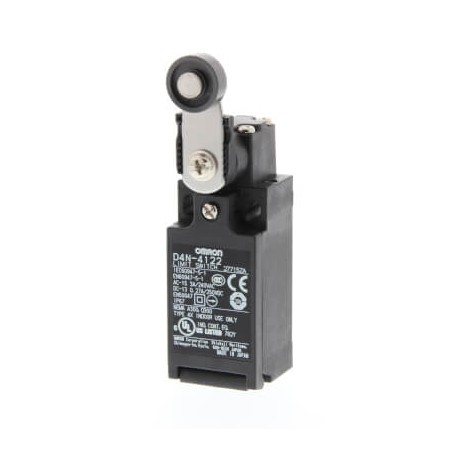

OMRON D4N-4122 D4N-4122 D4N 0027B D4N4122 OMRON Plastic 1NC/1NO Sharp Roller Metal M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-4122 D4N 0027B D4N4122 OMRON Plastic 1NC/1NO Sharp Roller Metal M20

D4N-4122

D4N 0027B

D4N4122

OMRON

1 Pcs.

Plastic 1NC/1NO Sharp Roller Metal M20 Limit switch, D4N, M20 (1-conduit), 1NC/1NO (snap-action), Roller lever (metal lever, resin roller)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron plastic limit switch provides dependable physical tracking and circuit interruption for moving machinery parts in industrial control circuits. The unit accurately translates mechanical motion into electrical signals to manage automated workflows. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry metrical
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingPlasticActuator typeRoller leverActuator detailMetal lever, Resin leverConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap action
