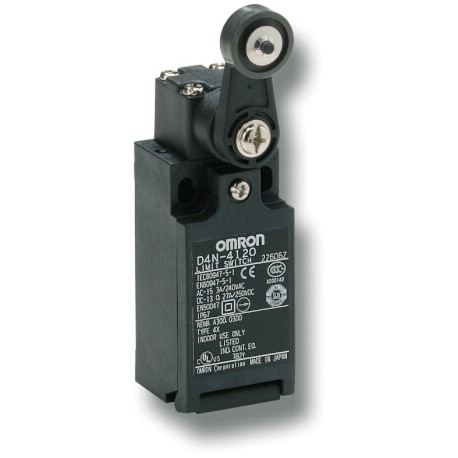

OMRON D4N-1C22 D4N-1C22 D4N 0278M D4N1C22 OMRON Plastic 2NC/1NO Slow Lever arm PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4N-1C22 D4N 0278M D4N1C22 OMRON Plastic 2NC/1NO Slow Lever arm PG13,5

D4N-1C22

D4N 0278M

D4N1C22

OMRON

1 Pcs.

Plastic 2NC/1NO Slow Lever arm PG13,5 Plastic 2NC/1NA Slow Roller Lever PG13.5 Limit switch, Roller lever (metal lever, resin roller), 2NC/1NO (slow-action), 2NC/1NO (slow-action), Pg13.5 (1-conduit)

Automation > End switch
D4N

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron plastic limit switch, model D4N-1C22, is an industrial position sensor applied in automation setups to monitor mechanical travel and maintain operational safety sequences. Engineers rely on these components to confirm machinery positioning across automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): Cable entry PG
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Plastic
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
  • Direct opening mechanism and approval by notified body
  • Rugged plastic housing with double insulation
  • Wide range of actuators
  • M12 connectors or terminal block with M20 conduit
