View larger
Images are for illustrative purposes only. Please refer to data sheet for details

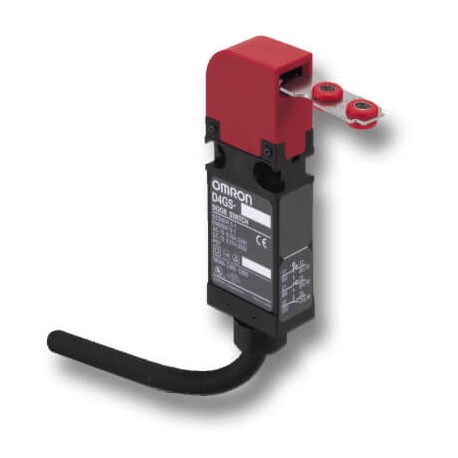

D4GS-N4T D4GS0040F D4GSN4T OMRON Input pin vertical 3nc contact forms
D4GS-N4T
D4GS0040F
D4GSN4T
OMRON
1 Pcs.
Input pin vertical 3nc contact forms
3NC vertical pin input
Safety door switch, D4GS-N,IP67, 3NC (slow-action), vertical key insertion, 1m cable
Automation > Position switch with separate actuator
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Slim housing only 17mm wide
- Line up with up to three contacts: 1NC/1NO, 2NC, 2NC/1NO and 3NC
- Reversible design allows front or rear mounting
- Key operation hole with rubber mounting to absorb vibration and shock
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Type of switching contact (EF003591) | Slow-action switch |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | With cable preassembled |
| Type of interface (EF006977) | None |
| Housing material (EF001596) | Other |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 0.75 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.27 A |
| Number of contacts as normally closed contact (EF008255) | 3 |
| Width sensor (EF007094) | 30 mm |
| Height of sensor (EF007283) | 17 mm |
| Length of sensor (EF007334) | 85 mm |
| Ambient temperature during operating (EF007515) | -30 °C |
