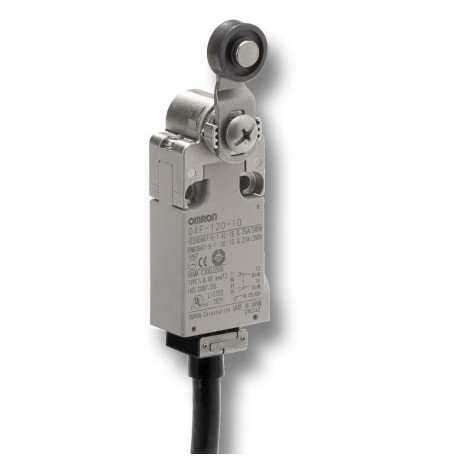

OMRON D4F-320-3D D4F-320-3D D4F 0027F D4F3203D OMRON Metal IP67 2NC/2NA Lever Roller plunger 3m vert. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4F-320-3D D4F 0027F D4F3203D OMRON Metal IP67 2NC/2NA Lever Roller plunger 3m vert.

D4F-320-3D

D4F 0027F

D4F3203D

OMRON

1 Pcs.

Metal IP67 2NC/2NA Lever Roller plunger 3m vert. Metallic IP67 2NC/2NA Roller Lever 3m vert. Small Safety Limit Switch, 2NC/2NO slow-action, roller lever, 3 m cable, vertical cable exit

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Metal IP67 2NC/2NA Lever Roller plunger 3m vert. part D4F-320-3D by Omron is a specialized safety limit switch deployed across industrial machinery to monitor physical positions and interlocking guards. Such components provide reliable electrical feedback when contacted by moving parts, halting hazardous operations to protect personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
  • Slim-size housing
  • Direct opening mechanism
  • Roller or plunger actuators
  • Pre-wired versions
