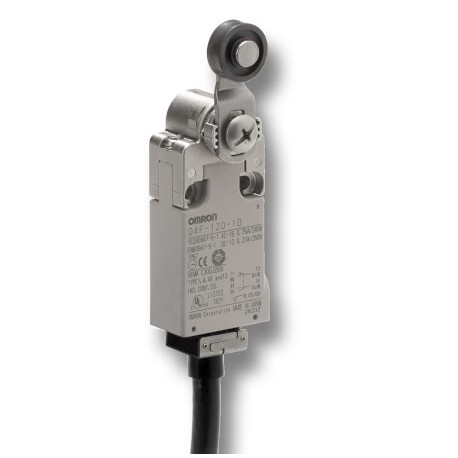

OMRON D4F-320-1D D4F-320-1D D4F 0011M D4F3201D OMRON Metal IP67 2NC/2NA Lever Roller plunger 1m vert. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4F-320-1D D4F 0011M D4F3201D OMRON Metal IP67 2NC/2NA Lever Roller plunger 1m vert.

D4F-320-1D

D4F 0011M

D4F3201D

OMRON

1 Pcs.

Metal IP67 2NC/2NA Lever Roller plunger 1m vert. Metallic IP67 2NC/2NA Roller Lever 1m vert. Small Safety Limit Switch, 2NC/2NO slow-action, roller lever, 1 m cable, vertical cable exit

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron metal limit switch product part D4F-320-1D functions as a precise contact sensor used across industrial automation environments to verify travel endpoints and component positioning. Engineers frequently install these units in safety gates, robotic arms, and production lines to ensure secure operating cycles. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Roller lever
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
  • Slim-size housing
  • Direct opening mechanism
  • Roller or plunger actuators
  • Pre-wired versions
