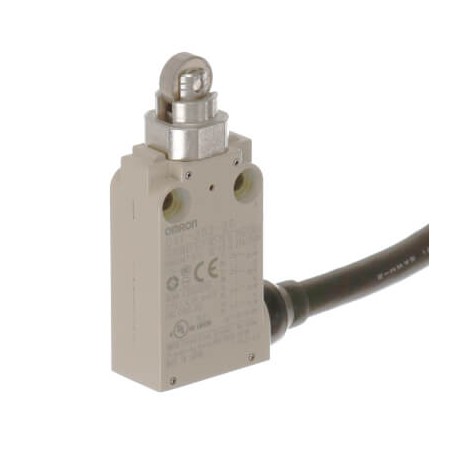

OMRON D4F-302-3R D4F-302-3R D4F 0023C D4F3023R OMRON Metal IP67 2NC/2NA Plunger Roller plunger 3m horiz. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4F-302-3R D4F 0023C D4F3023R OMRON Metal IP67 2NC/2NA Plunger Roller plunger 3m horiz.

D4F-302-3R

D4F 0023C

D4F3023R

OMRON

1 Pcs.

Metal IP67 2NC/2NA Plunger Roller plunger 3m horiz. Metalico IP67 2NC/2NA Embolo Roldana 3m horiz. Small Safety Limit Switch, 2NC/2NO slow-action, roller plunger, 3 m cable, horizontal cable exit

Automation > End switch
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron D4F-302-3R metal IP67 2NC/2NA plunger roller plunger 3m horiz. is a robust safety limit switch engineered for harsh industrial applications. It is typically installed on machine guards, moving actuators, and access panels to verify safe operating conditions and trigger immediate interlocks when machinery hazards are exposed. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Alignment of the control element (EF008793): Roller cam straight
  • Type of control element (EF006976): Plunger
  • Type of electric connection (EF003961): With cable preassembled
  • Switching function (EF000189): Slow-action switch
  • Housing material (EF001596): Metal
  • Switching function latching (EF007447): No
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A

More info

▲
Material housingMetalActuator typeRoller plungerActuator detailMetal rollerConnection methodCableCable length3 mCable entry directionRightNumber of contacts, normally-open2Number of contacts, normally-closed2Make before breakSwitch actionSlow action

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
