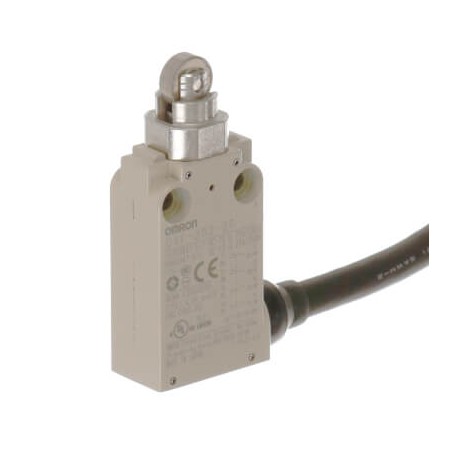

D4F-102-1R D4F 0005E D4F1021R OMRON Metal IP67 1NC/1NO Plunger Roller plunger 1m horiz.
D4F-102-1R
D4F 0005E
D4F1021R
OMRON
1 Pcs.
Automation > End switch
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A miniature limit switch provides high-precision displacement sensing for intricate automated systems, robotics, and confined spaces where standard sensors cannot fit. The Omron D4F-102-1R integrates a pre-assembled cable and a roller plunger mechanism inside a compact metal enclosure to ensure dependable safety feedback.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Construction type housing (EF004008): Cuboid
- Degree of protection (IP) (EF005474): IP67
- Alignment of the control element (EF008793): Roller cam straight
- Type of control element (EF006976): Plunger
- Type of electric connection (EF003961): With cable preassembled
- Switching function (EF000189): Slow-action switch
- Housing material (EF001596): Metal
- Switching function latching (EF007447): No
- With status indication (EF001602): No
- Suitable for safety functions (EF001597): Yes
- Forced opening (EF006694): Yes
- Output electronic (EF006987): No
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 1
- Rated operation current Ie at AC-15, 230 V (EF001385): 0.75 A
- Rated operation current Ie at DC-13, 125 V (EF007085): 0.55 A
