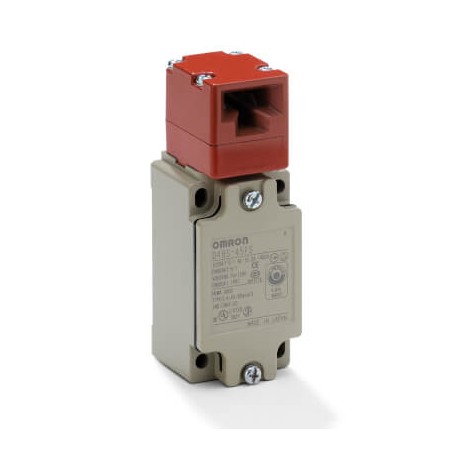

OMRON D4BS-2AFS D4BS-2AFS D4BS0029G D4BS2AFS OMRON End Race Gate Metal 2NC G1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BS-2AFS D4BS0029G D4BS2AFS OMRON End Race Gate Metal 2NC G1/2

D4BS-2AFS

D4BS0029G

D4BS2AFS

OMRON

1 Pcs.

End Race Gate Metal 2NC G1/2 Safety-door switch, Metal, Tongue operated, G1/2 (1 conduit), 2NC (slow-action)

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron metal safety door switch is engineered to safeguard industrial operators by monitoring access gates and perimeter fencing around automated machinery. These electromechanical switches break control circuits immediately when protective gates are opened, halting hazardous machine motion.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 2 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Number of contacts as normally closed contact (EF008255): 2
  • Width sensor (EF007094): 40 mm
  • Height of sensor (EF007283): 43 mm
  • Length of sensor (EF007334): 111.5 mm
  • Ambient temperature during operating (EF007515): -40 °C

More info

▲
Door switch typeKey-operatedGuard-lockMaterial housingMetalMaterial headMetalAmbient temperature (operating)-40-80 °CDirection of operationAdjustableDoor contacts NC2Door contacts NO0LED indicatorConnection methodTerminal blockCable length0 mDegree of protection (IP)IP67Conduit sizeG1/2Number of conduits1Switch actionSlow actionShapeCuboidOverall length of sensor111.5 mmHeight of sensor43 mmWidth of sensor40 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
