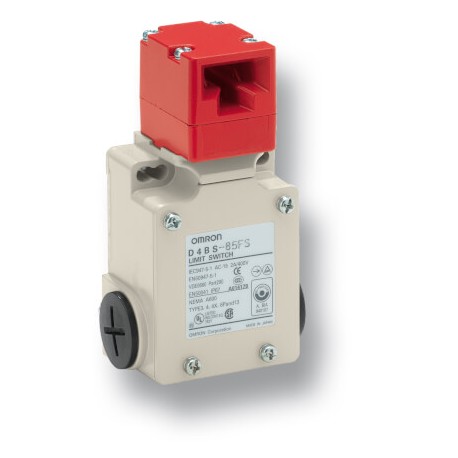

OMRON D4BS-25FS D4BS-25FS D4BS0002E D4BS25FS OMRON Metal 1NC/1NO G1/2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BS-25FS D4BS0002E D4BS25FS OMRON Metal 1NC/1NO G1/2

D4BS-25FS

D4BS0002E

D4BS25FS

OMRON

1 Pcs.

Metal 1NC/1NO G1/2 Safety-door switch, G1/2 (1 conduit), 1NC/1NO (slow-action) Limit switch

Automation > Position switch with separate actuator
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron D4BS-25FS D4BS0002E D4BS25FS OMRON Metal 1NC/1NO G1/2 is a key-operated door switch applied extensively in industrial plant engineering to monitor protective doors and removable safety guards. These electromechanical switches safeguard operators by immediately signaling safety controllers to shut down automated equipment when a barrier is dislodged.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Door switch type: Key-operated
  • Material housing: Metal
  • Material head: Metal
  • Ambient temperature (operating): -40-80 °C
  • Direction of operation: Adjustable
  • Door contacts NC: 1
  • Door contacts NO: 1
  • Connection method: Terminal block
  • Cable length: 0 m
  • Degree of protection (IP): IP67
  • Conduit size: G1/2
  • Number of conduits: 1
  • Switch action: Slow action
  • Shape: Cuboid
  • Overall length: 111.5 mm
  • Height of sensor: 43 mm

More info

▲

Specifications

Door switch typeKey-operated
Guard-lock
Material housingMetal
Material headMetal
Ambient temperature (operating)-40-80 °C
Direction of operationAdjustable
Door contacts NC1
Door contacts NO1
With LED indicator
Connection methodTerminal block
Cable length0 m
Degree of protection (IP)IP67
Conduit sizeG1/2
Number of conduits1
Switch actionSlow action
ShapeCuboid
Overall length111.5 mm
Height of sensor43 mm
Width sensor40 mm

Accessories

D4BS-K1Safety-door switch accessory, D4BS, operation key: horizontal mounting
D4BS-K2Safety-door switch accessory, D4BS, operation key: vertical mounting
D4BS-K3Safety-door switch accessory, D4BS, operation key: horizontal mounting
