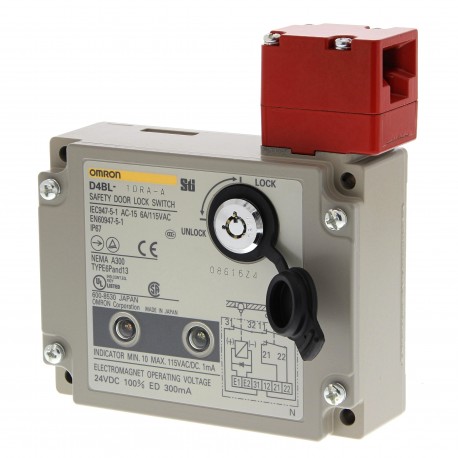

OMRON D4BL-1DRG-A D4BL-1DRG-A D4BL0024M D4BL1DRGA OMRON Metal 2NC+1NC LED 24vdc Bloqeo solenoid PG13,5 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4BL-1DRG-A D4BL0024M D4BL1DRGA OMRON Metal 2NC+1NC LED 24vdc Bloqeo solenoid PG13,5

D4BL-1DRG-A

D4BL0024M

D4BL1DRGA

OMRON

1 Pcs.

Metal 2NC+1NC LED 24vdc Bloqeo solenoid PG13,5 Metallic 2NC+1NC LED 24Vcc Solenoid Lock PG13.5 Safety door-lock switch, PG13.5, 24 VDC solenoid lock, mechanical release, 2NC (slow-action), 1NC (slow-action), LED

Automation > Position switch with guard locking
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron solenoid safety switch D4BL-1DRG-A functions as a heavy-duty locking device designed to safeguard perimeter fencing and access doors surrounding automated manufacturing equipment. By maintaining a locked state until machine cycles halt, this switch prevents operator exposure to dangerous moving components.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Type of switching contact (EF003591): Slow-action switch
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Cable entry PG
  • Housing material (EF001596): Metal
  • With status indication (EF001602): Yes
  • Suitable for safety functions (EF001597): Yes
  • With escape release (EF007172): Yes
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Guard locking force (EF007552): 700 N
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 0 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0 A
  • Number of contacts as normally closed contact (EF008255): 3
  • Rated operation current Ie at AC-15, 125 V (EF007082): 6 A

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
