View larger
Images are for illustrative purposes only. Please refer to data sheet for details

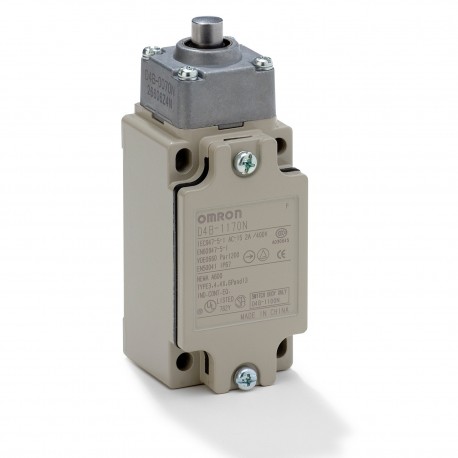

D4B-4A70N D4BN4017R D4B4A70N OMRON Metal SPDT-2NC Plunger flat M20
D4B-4A70N
D4BN4017R
D4B4A70N
OMRON
1 Pcs.
Metal SPDT-2NC Plunger flat M20
Safety Limit switch, D4B, M20, DPDB 2-NC (slow-action), top plunger
Automation > End switch
D4B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Material housing | Aluminium |
| Actuator type | Plunger |
| Connection method | Terminal block |
| Conduit size | M20 |
| Cable entry direction | Bottom |
| Number of contacts, normally-open | 0 |
| Number of contacts, normally-closed | 2 |
| Make before break | |
| Switch action | Slow action |
| Direct opening mechanism |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (NEMA) (EF011959) | Other |
| Coating housing (EF001601) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Alignment of the control element (EF008793) | Other |
| Type of control element (EF006976) | Plunger |
| Type of interface for safety communication (EF003956) | None |
| Type of electric connection (EF003961) | Cable entry metrical |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Slow-action switch |
| Housing material (EF001596) | Metal |
| Explosion safety category for gas (EF003997) | None |
| With status indication (EF001602) | No |
| Suitable for safety functions (EF001597) | Yes |
| Forced opening (EF006694) | Yes |
| Output electronic (EF006987) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 10 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.8 A |
| Number of safety auxiliary contacts (EF006940) | 0 |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 6 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.4 A |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 10 A |
| Width sensor (EF007094) | 40 mm |
| Height of sensor (EF007283) | 103 mm |
| Length of sensor (EF007334) | 43 mm |
| Ambient temperature during operating (EF007515) | -40 °C |
