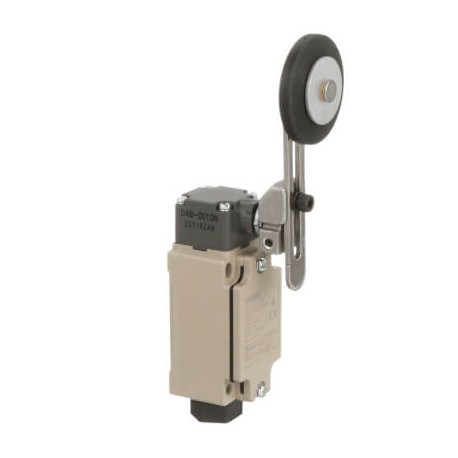

OMRON D4B-4113N D4B-4113N D4BN4021G D4B4113N OMRON Metal SPDT-NO/NC-M20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

D4B-4113N D4BN4021G D4B4113N OMRON Metal SPDT-NO/NC-M20

D4B-4113N

D4BN4021G

D4B4113N

OMRON

1 Pcs.

Metal SPDT-NO/NC-M20 Limit switch, SPDB NO/NC, snap action, 10 A

Automation > End switch
D4B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial automation setups rely heavily on devices like the Omron D4B-4113N position switch to track component movement, confirm gate closures, and regulate automated machinery cycles securely. Position switches act as robust signal generators that convert mechanical motion into electrical switching states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Construction type housing (EF004008): Cuboid
  • Degree of protection (IP) (EF005474): IP67
  • Type of electric connection (EF003961): Plug-in connection others
  • Switching function (EF000189): Quick-break switch
  • Housing material (EF001596): Metal
  • With status indication (EF001602): No
  • Suitable for safety functions (EF001597): Yes
  • Forced opening (EF006694): Yes
  • Output electronic (EF006987): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Rated operation current Ie at AC-15, 230 V (EF001385): 10 A
  • Rated operation current Ie at DC-13, 125 V (EF007085): 0.8 A
  • Number of safety auxiliary contacts (EF006940): 0
  • Rated operation current Ie at DC-13, 24 V (EF007087): 6 A
  • Rated operation current Ie at DC-13, 230 V (EF001386): 0.4 A

More info

▲
Material housingAluminiumActuator typeRoller leverActuator detailRubber rollerConnection methodTerminal blockConduit sizeM20Cable entry directionBottomNumber of contacts, normally-open1Number of contacts, normally-closed1Make before breakSwitch actionSnap actionDirect opening mechanism
