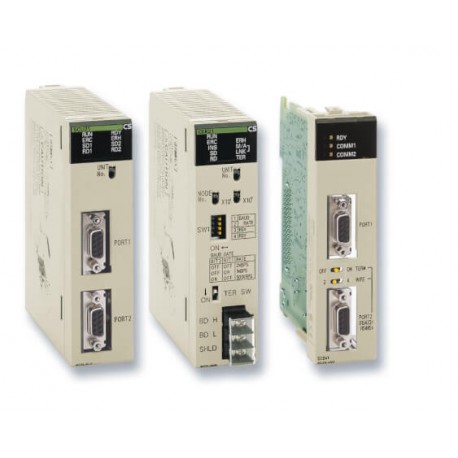

OMRON CS1W-RPT03 CS1W-RPT03 CS1W0276B CS1WRPT03 OMRON Repeater Controller Link Cable lt /lt - gt /gt Fiber Optic

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

CS1W-RPT03 CS1W0276B CS1WRPT03 OMRON Repeater Controller Link Cable lt /lt - gt /gt Fiber Optic

Name: CS1W-RPT03 CS1W0276B CS1WRPT03 OMRON Repeater Controller Link Cable lt /lt - gt /gt Fiber Optic
Brand: OMRON
SKU: CS1W0276B

Reference: CS1W-RPT03

Code: CS1W0276B

Catalog Number: CS1WRPT03

Manufacturer: OMRON

Units per package: 1 Pcs.

Description:

Repeater Controller Link Cable-Fiber Optic Controller Link Cable Repeater-Fiber Optics

Categories:
Automation > Fieldbus, decentr. periphery - communication module
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CS1W-RPT03 repeater controller link cable fiber optic functions as a critical network extension tool, allowing industrial control systems to bridge vast physical distances without signal degradation. These communication modules are frequently installed in large manufacturing complexes to link distant PLCs, operator interfaces, and distributed sub-networks securely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Serial: 2 × RS-232C
Serial: 2 × RS-422/RS-485
Serial: 2 × RS-232C
Serial: 1 × RS-232C + 1 × RS-422/RS-485
GP-IB: Master/Slave selectable
Ethernet: 1 × 100 Base-Tx
Controller link: 2-wire twisted pair
EtherNet/IP: 1 × 100 Base-Tx
DeviceNet: 1 × CAN
CompoNet: 4-wire, data + power to slaves (Master)
CompoBus/S: 2-wire (Master)
PROFIBUS-DP: 1 × RS-485 (Master)
CAN: 1 × CAN
PROFINET IO: 1 × 100 Base-Tx PROFINET IO controller
PROFIBUS-DP: 1 × RS-485 (Slave)
Controller link PCI board with support software: PCI, wired CLK

More info

▲

Specifications & ordering info

Ordering information

Type	Ports	Protocols	Unit class	Remarks	Connection type	Order code
Serial	2 × RS-232C	CompoWay/F, Host Link, NT link, Modbus, User-defined	CPU bus unit	-	9-pin D-Sub	CS1W-SCU21-V1
Serial	2 × RS-422/RS-485	CompoWay/F, Host Link, NT link, Modbus, User-defined	CPU bus unit	-	9-pin D-Sub	CS1W-SCU31-V1
Serial	2 × RS-232C	CompoWay/F, Host Link, NT link, Modbus, User-defined	CPU option board	-	9-pin D-Sub	CS1W-SCB21-V1
Serial	1 × RS-232C + 1 × RS-422/RS-485	CompoWay/F, Host Link, NT link, Modbus, User-defined	CPU option board	-	9-pin D-Sub	CS1W-SCB41-V1
GP-IB	Master/Slave selectable	GP-IB instrument communication	Special I/O unit	-	GP-IB	CS1W-GPI01
Ethernet	1 × 100 Base-Tx	UDP, TCP/IP, FTP server, SMTP (e-mail), SNTP (time adjust), FINS routing, socket service	CPU bus unit	-	RJ45	CS1W-ETN21
Controller link	2-wire twisted pair	Omron proprietary	CPU bus unit	-	2-wire screw + GND	CS1W-CLK23
	Optical HPCF			-	2 × HPCF connector	CS1W-CLK13
	Optical graded-index fiber			-	4 × ST connector	CS1W-CLK53
EtherNet/IP	1 × 100 Base-Tx	EtherNet/IP, UDP, TCP/IP, FTP server, SNTP, SNMP	CPU Bus unit	31 mm	RJ45	CS1W-EIP21
DeviceNet	1 × CAN	DeviceNet	CPU bus unit	-	5-p detachable	CS1W-DRM21-V1
CompoNet	4-wire, data + power to slaves (Master)	CompoNet (CIP-based)	Special I/O unit	-	4-p detachable IDC or screw	CS1W-CRM21
CompoBus/S	2-wire (Master)	Omron proprietary	Special I/O unit	-	2-wire screw + 2-wire power	CS1W-SRM21
PROFIBUS-DP	1 × RS-485 (Master)	DP, DPV1	CPU bus unit	-	9-pin D-Sub	CS1W-PRM21
CAN	1 × CAN	CANopen, User-defined	CPU bus unit	-	5-p detachable	CS1W-CORT21
PROFINET IO	1 × 100 Base-Tx PROFINET IO controller	FINS UDP	CPU bus unit	-	RJ45	CS1W-PNT21
PROFIBUS-DP	1 × RS-485 (Slave)	DP	C200H special I/O unit	C200H units cannot be used on CS1D systems	9-pin D-Sub	C200HW-PRT21

Accessories

Description	Connection type	Order code
RS-232C to RS-422/RS-485 signal converter. Mounts directly on serial port.	9-pin D-sub to screw clamp terminals	CJ1W-CIF11
Controller link PCI board with support software	PCI, wired CLK	3G8F7-CLK23-E
Controller link PCI board with support software	PCI, HPCF connectors	3G8F7-CLK13-E
Controller link PCI board with support software	PCI, ST connectors	3G8F7-CLK53-E
Controller link repeater unit (wire to wire)	Screw - Screw	CS1W-RPT01
Controller link repeater unit (wire to HPCF fiber)	Screw - HPCF connector	CS1W-RPT02
Controller link repeater unit (wire to graded-index glass fiber)	Screw - ST connector	CS1W-RPT03
PROFIBUS DP to RS-422/RS-485 Serial Gateway. User-configurable, with Omron protocols built-in.	9-pin D-sub to screw clamp terminals	PRT1-SCU11
PROFINET IO + ModBus/TCP to Modbus/RTU (RS-485) Gateway.	3 × RJ45 to screw clamp terminals	EJ1N-HFU-ETN

Note: For Ethernet Cables and Accessories, see page

Accessories

Ethernet cables and accessories

EtherCAT patch cables, improved shield

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm												Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	20	30	50	100	150	200	300	500	750	1000	1500	2000	Order code
	M12 straight	M12 straight	PVC	AWG22, 2 pairs	Black	–	–	⬛	⬛	–	⬛	⬛	⬛	–	⬛	–	–	XS5W-T421-[.]M2-SS
	M12 straight	RJ45	PVC	AWG22, 2 pairs	Black	–	–	⬛	⬛	–	⬛	⬛	⬛	–	⬛	–	–	XS5W-T421-[.]MC-SS

Note: For [.] fill in the 1-character length code.

Ethernet patch cables, standard RJ45 connectors

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm												Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	20	30	50	100	150	200	300	500	750	1000	1500	2000	Order code
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Blue	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-B
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Yellow	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-Y
	RJ45 std.	RJ45 std.	LSZH	Cat6a S/FTP 4 pairs	Green	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-6LSZH8SS[...]CM-G
	RJ45 std.	RJ45 std.	PUR	Cat5e S/FTP 4 pairs	Green	–	–	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	⬛	XS6W-5PUR8SS[...]CM-G

Note: For [...] fill in the length in cm.

Ethernet patch cables, RJ45/M12 connectors

Shape	Connector 1	Connector 2	Material	Cable	Color	Length in cm								Order code
Shape	Connector 1	Connector 2	Material	Cable	Color	30	50	100	200	300	500	1000	1500	Order code
	RJ45	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T421-[.]MD-K
	M12 straight	M12 straight	PVC	Cat5e Shielded Quad	Light Blue	–	B	C	D	E	G	J	K	XS5W-T421-[.]M2-K
	M12 straight	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T421-[.]MC-K
	M12 angled	M12 angled	PVC	Cat5e Shielded Quad	Light Blue	–	B	C	D	E	G	J	K	XS5W-T422-[.]M2-K
	M12 angled	RJ45	PVC	Cat5e Shielded Quad	Light Blue	A	B	C	D	E	G	J	K	XS5W-T422-[.]MC-K

Note: For [.] fill in the 1-character length code.

Specifications

Item	XS6W-6LSZH8SS_CM-_	XS6W-5PUR8SS_CM-G
Rated current	1 A (at 50°C)
Withstand voltage	1,000 VDC for 60 s (leakage current: 1 mA max.)
Ambient operating temperature	−20 to 60°C	−40 to 85°C
Ambient storage temperature	−20 to 60°C	−40 to 85°C
Ambient installation temperature	0 to 50°C	−10 to 60°C
Protective structure	IP20	IP20

Accessories

Ethernet cables and accessories

Accessories

Type	Connector	Specification	Color	Length	Order code
Ethernet installation cable	none	CAT 5, SF/UTP, 4 × 2 × AWG 24/1 (solid core), Polyurethane (PUR)	Green	100 m	WM IE-5IC4x2xAWG24/1-PUR
Ethernet installation cable	none	CAT 5, SF/UTP, 4 × 2 × AWG 26/7 (stranded core), Polyurethane (PUR)	Green	100 m	WM IE-5CC4x2xAWG26/7-PUR
Ethernet socket	RJ45 socket	DIN-rail mount socket to terminate installation cable in the cabinet	Grey	60 × 17.5 × 67 mm	WM IE-TO-RJ45-FJ-B
Ethernet field-mount plugs	Metal RJ45	for AWG22 to AWG26	Chrome	52 mm	WM IE-PS-RJ45-FH-BK
Ethernet field-mount plugs	Plastic RJ45	for AWG22 to AWG24	Black	52 mm	XS6G-T421-1

Industrial switching hubs

Shape

Functions

Ports

Failure detection

Power supply voltage

Order code

Quality of Service (QoS):

EtherNet/IP control data priority

Failure detection:

Broadcast storm and LSI error detection
10/100BASE-TX, Auto-negotiation

–

24.0 VDC±5%

W4S1-03B

W4S1-05B

⬛

W4S1-05C

EtherCAT junction slave

Shape

Functions

Ports

Power supply voltage

Order code

Creation of star- and tree topologies
in EtherCAT networks.

Distributed Clock (DC) is supported.

20.4 to 28.8 VDC

(24 VDC –15% to 20%)

GX-JC03

GX-JC06
