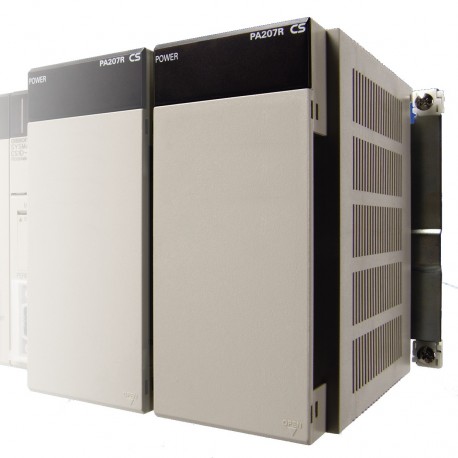

OMRON CS1D-PD025 CS1D-PD025 CS1D0021C CS1DPD025 OMRON Power supply 24 Vdc 40 W for CS1 Duplex View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CS1D-PD025 CS1D0021C CS1DPD025 OMRON Power supply 24 Vdc 40 W for CS1 Duplex

CS1D-PD025

CS1D0021C

CS1DPD025

OMRON

1 Pcs.

Power supply 24 Vdc 40 W for CS1 Duplex Power supply unit for duplex system, 24 VDC, 40W, 1.3-5.3A

Automation > PLC system power supply
CS1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CS1D-PD025 is a specialized power supply engineered to support modular rack-based automation architectures and redundant control systems. Industrial power modules ensure uninterrupted operation of central processing units and backplane communication buses within complex manufacturing environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 19.2 to 28.8 VDC: 40 W max.
  • 4.3 A: 0.56 A
  • 55 VA max.: 5.3 A
  • Power supply for dual-redundant system: CS1D-PD025
  • 85 to 264 VAC 50/60 Hz: 120 VA max.
  • Service output 24 VDC, 0.8 A: C200HW-PA204S
  • Run status output (SPST relay): C200HW-PA204R
  • 180 VA max.: 9.0 A
  • 150 VA max.: 7.0 A
  • CPU backplane: 2
  • CPU backplane: 3
  • CPU backplane: 5
  • CPU backplane: 8
  • CPU backplane: 10
  • Expansion backplane: 3
  • Expansion backplane: 5

More info

▲

Specifications & ordering info

Ordering information

Power supplies

Input range

Power
consumption

Output capacity 5 VDC

Output capacity 26 VDC

Max. output
power

Extra functions

Order code

19.2 to 28.8 VDC

40 W max.

6.6 A

0.62 A

30 W

-

C200HW-PD024

4.3 A

0.56 A

28 W

Power supply for dual-redundant system

CS1D-PD024

55 VA max.

5.3 A

1.3 A

40 W

-

C200HW-PD025

Power supply for dual-redundant system

CS1D-PD025

85 to 264 VAC
50/60 Hz

120 VA max.

4.6 A

0.62 A

30 W

Maintenance status display

C200HW-PA204C

85 to 132 VAC,
170 to 264 VAC,
50/60 Hz

-

C200HW-PA204

Service output 24 VDC, 0.8 A

C200HW-PA204S

Run status output (SPST relay)

C200HW-PA204R

180 VA max.

9.0 A

1.3 A

45 W

Run status output (SPST relay)

C200HW-PA209R

150 VA max.

7.0 A

1.3 A

35 W

Power supply for dual-redundant system

CS1D-PA207R

Backplanes

Type

Slots

Expansion connector

Width

Special functions

Order code

CPU backplane

2

No

200 mm

-

CS1W-BC023

CPU backplane

3

Yes

260 mm

-

CS1W-BC033

CPU backplane

5

Yes

330 mm

-

CS1W-BC053

CPU backplane

8

Yes

435 mm

-

CS1W-BC083

CPU backplane

10

Yes

505 mm

-

CS1W-BC103

Expansion backplane

3

Yes

260 mm

-

CS1W-BI033

Expansion backplane

5

Yes

330 mm

-

CS1W-BI053

Expansion backplane

8

Yes

435 mm

-

CS1W-BI083

Expansion backplane

10

Yes

505 mm

-

CS1W-BI103

CPU backplane

5

Yes

505 mm

For Duplex CPU + Power supplies

CS1D-BC052

CPU backplane

8

Yes

505 mm

For Duplex Power supplies

CS1D-BC082S

Expansion backplane

9

Yes

505 mm

For Duplex Power supplies

CS1D-BI092

Accessories

Type

Remarks

Order code

I/O Expansion cable to connect CS1 CPU backplane or
Expansion backplane to next
Expansion backplane.

0.3 m

CS1W-CN313

0.7 m

CS1W-CN713

2.0 m

CS1W-CN223

3.0 m

CS1W-CN323

5.0 m

CS1W-CN523

10.0 m

CS1W-CN133

12.0 m

CS1W-CN133-B2


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
