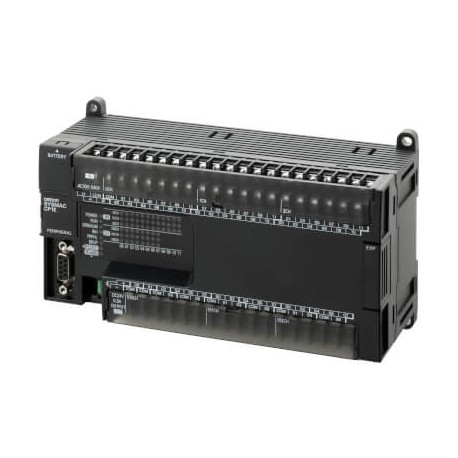

OMRON CP1E-N60S1DR-A CP1E-N60S1DR-A 377338 CP1EN60S1DRA OMRON CPU S1 36/24 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N60S1DR-A 377338 CP1EN60S1DRA OMRON CPU S1 36/24 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K

CP1E-N60S1DR-A

377338

CP1EN60S1DRA

OMRON

1 Pcs.

CPU S1 36/24 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K CP1E-N60S1DR-A

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

OMRON CPU S1 (CP1E-N60S1DR-A) is a robust programmable logic controller unit engineered to provide dependable automation control for small-scale industrial machinery and equipment. Control units of this design evaluate digital and analog signals from industrial field devices, executing internal logic to operate machinery reliably. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 36
  • Input type: PNP/NPN
  • Number of digital outputs: 24
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, Serial RS-485, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 1
  • Communication option(s): CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs36
Input typePNP/NPN
Number of digital outputs24
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, Serial RS-485, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports1
Communication option(s)CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels24
Max. number of local I/O points180
Max. number of expansion units3
Built-in auxiliary 24 VDC output300 mA
Operating temperature range0-55 °C
Height90 mm
Width195 mm
Depth79 mm
