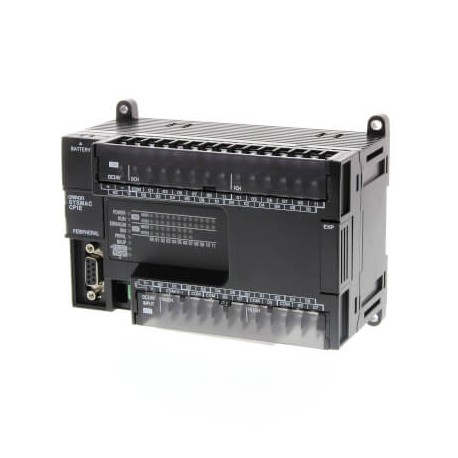

CP1E-N40S1DT-D 377336 CP1EN40S1DTD OMRON CPU S1 24/16 I/O DC NPN RS-232c + RS-485 8K + 8K
CP1E-N40S1DT-D
377336
CP1EN40S1DTD
OMRON
1 Pcs.
Automation > PLC CPU-module
CPM2C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A programmable logic controller CPU S1 (CP1E-N40S1DT-D by Omron) executes user programs to monitor and control industrial machinery through digital I/O channels, serial communication ports, and high-speed encoder interfaces.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Supply voltage type: DC
- Number of digital inputs: 24
- Input type: PNP/NPN
- Number of digital outputs: 16
- Output type: NPN
- Program capacity: 8 K steps
- Data memory capacity: 8 K words
- Logic execution time: 1.19 µs
- Communication port(s): Serial RS-232C, Serial RS-485, USB
- Number of Ethernet ports: 0
- Number of USB ports: 1
- Number of RS-232 ports: 1
- Number of RS-485 ports: 1
- Communication option(s): CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
- Max. encoder input frequency: 100 kHz
- Max. number of PTP axes: 2
More info
▲Specifications
| Supply voltage type | DC |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | NPN |
| Program capacity | 8 K steps |
| Data memory capacity | 8 K words |
| Logic execution time | 1.19 µs |
| Communication port(s) | Serial RS-232C, Serial RS-485, USB |
| Number of Ethernet ports | 0 |
| Number of USB ports | 1 |
| Number of RS-232 ports | 1 |
| Number of RS-485 ports | 1 |
| Communication option(s) | CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. encoder input frequency | 100 kHz |
| Max. number of PTP axes | 2 |
| Max. pulse output frequency | 100 kHz |
| Function Block programming | |
| Battery-free memory backup | |
| Real-time clock | |
| Analog option boards | |
| Max. number of analog I/O channels | 24 |
| Max. number of local I/O points | 160 |
| Max. number of expansion units | 3 |
| Built-in auxiliary 24 VDC output | 0 mA |
| Operating temperature range | 0-55 °C |
| Height | 90 mm |
| Width | 150 mm |
| Depth | 79 mm |
