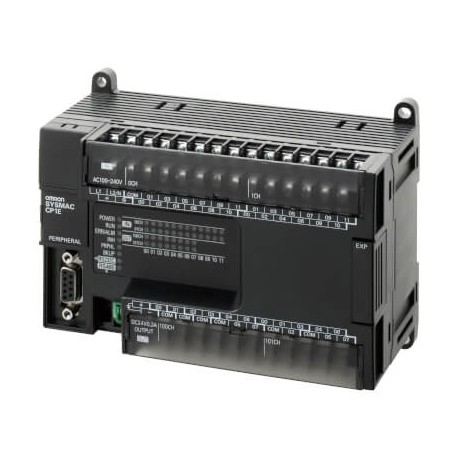

OMRON CP1E-N40S1DR-A CP1E-N40S1DR-A 377343 CP1EN40S1DRA OMRON CPU S1 24/16 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N40S1DR-A 377343 CP1EN40S1DRA OMRON CPU S1 24/16 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K

CP1E-N40S1DR-A

377343

CP1EN40S1DRA

OMRON

1 Pcs.

CPU S1 24/16 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 8K steps program + 8K words data memory, RS-232C and RS-485 (half-duplex) port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CP1E-N40S1DR-A compact programmable logic controller acts as an integrated control unit designed to direct machine operations through relay switching and onboard serial communication ports. Industrial automation systems utilize these processors to sequence repetitive manufacturing tasks, interface with field devices, and manage operational interlocks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 24
  • Input type: PNP/NPN
  • Number of digital outputs: 16
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, Serial RS-485, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 1
  • Communication option(s): CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs24
Input typePNP/NPN
Number of digital outputs16
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, Serial RS-485, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports1
Communication option(s)CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels24
Max. number of local I/O points160
Max. number of expansion units3
Built-in auxiliary 24 VDC output300 mA
Operating temperature range0-55 °C
Height90 mm
Width150 mm
Depth79 mm
