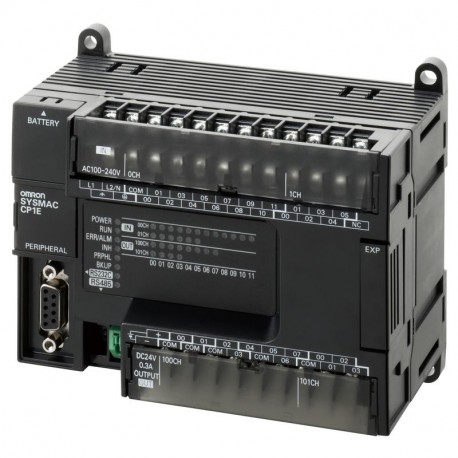

OMRON CP1E-N30S1DR-A CP1E-N30S1DR-A CP1W0175R CP1EN30S1DRA OMRON CPU S1 18/12 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-N30S1DR-A CP1W0175R CP1EN30S1DRA OMRON CPU S1 18/12 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K

CP1E-N30S1DR-A

CP1W0175R

CP1EN30S1DRA

OMRON

1 Pcs.

CPU S1 18/12 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K PLC, 100-240 VAC supply, 18 x 24 VDC inputs, 12 x relay outputs 2 A, 8K steps program + 8K words data memory, RS-232C and RS-485 (half-duplex) port

Automation > PLC CPU-module
CPM2C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as a compact PLC, the CP1E-N30S1DR-A CP1W0175R CP1EN30S1DRA OMRON CPU S1 18/12 I/O AC Relay Outputs RS-232c + RS-485 8K + 8K automates standalone machinery and discrete control applications. Compact programmable controllers integrate processing, inputs, and outputs into a single unit to manage repetitive manufacturing tasks efficiently.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 18
  • Input type: PNP/NPN
  • Number of digital outputs: 12
  • Output type: Relay
  • Program capacity: 8 K steps
  • Data memory capacity: 8 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): Serial RS-232C, Serial RS-485, USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 1
  • Number of RS-485 ports: 1
  • Communication option(s): CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
  • Max. encoder input frequency: 100 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs18
Input typePNP/NPN
Number of digital outputs12
Output typeRelay
Program capacity8 K steps
Data memory capacity8 K words
Logic execution time1.19 µs
Communication port(s)Serial RS-232C, Serial RS-485, USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports1
Number of RS-485 ports1
Communication option(s)CompoBus/S Slave, Serial RS-232C, Serial RS-422, Serial RS-485
Max. encoder input frequency100 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels24
Max. number of local I/O points150
Max. number of expansion units3
Built-in auxiliary 24 VDC output300 mA
Operating temperature range0-55 °C
Height90 mm
Width130 mm
Depth79 mm
