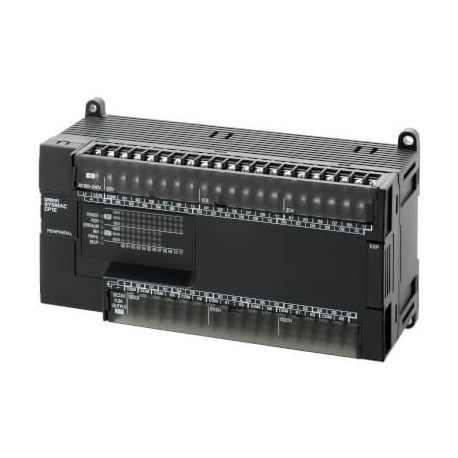

OMRON CP1E-E60SDR-A CP1E-E60SDR-A 377332 CP1EE60SDRA OMRON CPU S 36/24 I/O AC Relay Outputs 2K + 2K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-E60SDR-A 377332 CP1EE60SDRA OMRON CPU S 36/24 I/O AC Relay Outputs 2K + 2K

CP1E-E60SDR-A

377332

CP1EE60SDRA

OMRON

1 Pcs.

CPU S 36/24 I/O AC Relay Outputs 2K + 2K PLC, 100-240 VAC supply, 36 x 24 VDC inputs, 24 x relay outputs 2 A, 2K steps program + 2K words data memory

Automation > PLC CPU-module
CPM2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron CPU S (CP1E-E60SDR-A) acts as a compact programmable logic controller core, managing discrete inputs and outputs to automate sequential tasks in standalone industrial machinery. Central processing units of this type execute user control programs, process sensor data, and drive actuators across factory floor equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 36
  • Input type: PNP/NPN
  • Number of digital outputs: 24
  • Output type: Relay
  • Program capacity: 2 K steps
  • Data memory capacity: 2 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • ...

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs36
Input typePNP/NPN
Number of digital outputs24
Output typeRelay
Program capacity2 K steps
Data memory capacity2 K words
Logic execution time1.19 µs
Communication port(s)USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave
Max. encoder input frequency10 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels24
Max. number of local I/O points180
Max. number of expansion units3
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width195 mm
Depth79 mm
