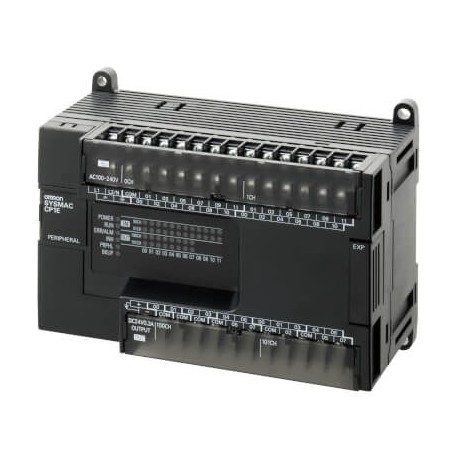

OMRON CP1E-E40SDR-A CP1E-E40SDR-A 377331 CP1EE40SDRA OMRON CPU S 24/16 I/O AC Relay Outputs 2K + 2K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-E40SDR-A 377331 CP1EE40SDRA OMRON CPU S 24/16 I/O AC Relay Outputs 2K + 2K

CP1E-E40SDR-A

377331

CP1EE40SDRA

OMRON

1 Pcs.

CPU S 24/16 I/O AC Relay Outputs 2K + 2K PLC, 100-240 VAC supply, 24 x 24 VDC inputs, 16 x relay outputs 2 A, 2K steps program + 2K words data memory

Automation > PLC CPU-module
CPM2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron CPU S unit, specifically part number CP1E-E40SDR-A, functions as a compact programmable logic controller designed to execute automation sequences, monitor digital inputs, and control output devices in manufacturing machinery. Micro PLCs provide scalable logic control for small-scale automation, handling timing, counting, and relay switching across industrial processes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 24
  • Input type: PNP/NPN
  • Number of digital outputs: 16
  • Output type: Relay
  • Program capacity: 2 K steps
  • Data memory capacity: 2 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 0
  • Number of RS-485 ports: 0
  • Communication option(s): CompoBus/S Slave
  • Max. encoder input frequency: 10 kHz
  • Max. number of PTP axes: 0

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs24
Input typePNP/NPN
Number of digital outputs16
Output typeRelay
Program capacity2 K steps
Data memory capacity2 K words
Logic execution time1.19 µs
Communication port(s)USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)CompoBus/S Slave
Max. encoder input frequency10 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels24
Max. number of local I/O points160
Max. number of expansion units3
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width150 mm
Depth79 mm
Weight660 g

Accessories

CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CP1W-CN811I/O expansion cable for CP1-series, 80 cm
CXONE-LT01-EV4CX-One Lite v4.x software, for Windows 2000/XP/Vista, single-user licence only, (requires CDs, CXOne-LTCD-EV4), limited to program the CPx PLC platform
