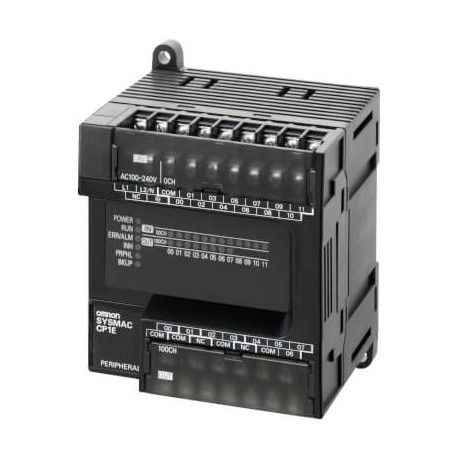

OMRON CP1E-E14SDR-A CP1E-E14SDR-A 377329 CP1EE14SDRA OMRON CPU S 8/6 I/O AC Relay Outputs 2K + 2K View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CP1E-E14SDR-A 377329 CP1EE14SDRA OMRON CPU S 8/6 I/O AC Relay Outputs 2K + 2K

CP1E-E14SDR-A

377329

CP1EE14SDRA

OMRON

1 Pcs.

CPU S 8/6 I/O AC Relay Outputs 2K + 2K PLC, 100-240 VAC supply, 8 x 24 VDC inputs, 6 x relay outputs 2 A, 2K steps program + 2K words data memory, no expandability

Automation > PLC CPU-module
CPM2B

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron CP1E-E14SDR-A CPU functions as a small-form-factor programmable logic controller processor that handles basic digital input monitoring and relay switching tasks within standalone automation machinery. Industrial control units execute ladder logic instructions to govern automated equipment operations reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Supply voltage type: AC
  • Number of digital inputs: 8
  • Input type: PNP/NPN
  • Number of digital outputs: 6
  • Output type: Relay
  • Program capacity: 2 K steps
  • Data memory capacity: 2 K words
  • Logic execution time: 1.19 µs
  • Communication port(s): USB
  • Number of Ethernet ports: 0
  • Number of USB ports: 1
  • Number of RS-232 ports: 0
  • Number of RS-485 ports: 0
  • Max. encoder input frequency: 10 kHz
  • Max. number of PTP axes: 0
  • Max. pulse output frequency: 0 kHz

More info

▲

Specifications

Supply voltage typeAC
Number of digital inputs8
Input typePNP/NPN
Number of digital outputs6
Output typeRelay
Program capacity2 K steps
Data memory capacity2 K words
Logic execution time1.19 µs
Communication port(s)USB
Number of Ethernet ports0
Number of USB ports1
Number of RS-232 ports0
Number of RS-485 ports0
Communication option(s)None
Max. encoder input frequency10 kHz
Max. number of PTP axes0
Max. pulse output frequency0 kHz
Function Block programming
Battery-free memory backup
Real-time clock
Analog option boards
Max. number of analog I/O channels0
Max. number of local I/O points14
Max. number of expansion units0
Built-in auxiliary 24 VDC output0 mA
Operating temperature range0-55 °C
Height90 mm
Width86 mm
Depth79 mm
