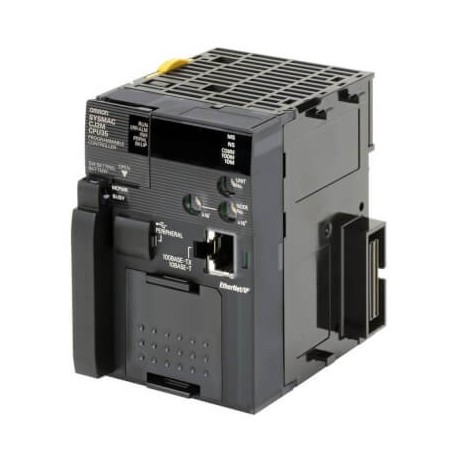

CJ2M-CPU33 CJ2W9022E 392398 OMRON 20K Ethernet CPU steps
CJ2M-CPU33
CJ2W9022E
CJ2MCPU33.1
OMRON
1 Pcs.
Automation > PLC CPU-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron CJ2M-CPU33 is a modular CPU unit built for high-performance machine control, data processing, and industrial network integration. Central processing units run system software and application logic to coordinate complex multi-axis machinery and distributed peripheral modules. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Program capacity: 40 K steps
- Data memory capacity: 64 K words
- Logic execution time: 0.04 µs
- Max. number of expansion units: 40
- Max. number of local I/O points: 2560
- Number of built-in digital I/Os: 0
- Communication port(s): EtherNet/IP, Ethernet TCP/IP, USB
- Product Height (unpacked): 90 mm
- Product Width (unpacked): 62 mm
- Product Depth (unpacked): 84.5 mm
- Product Weight (unpacked): 190 g
- Performance level according to EN ISO 13849-1 (EF007399): Level a
- Model (EF000010): Modular
- Voltage type (supply voltage) (EF002991): AC/DC
- Type of memory (EF002996): FLASH
- Radio standard UMTS (EF008525): No
More info
▲Specifications
| Program capacity | 40 K steps |
| Data memory capacity | 64 K words |
| Logic execution time | 0.04 µs |
| Max. number of expansion units | 40 |
| Max. number of local I/O points | 2560 |
| Number of built-in digital I/Os | 0 |
| Communication port(s) | EtherNet/IP, Ethernet TCP/IP, USB |
| Product Height (unpacked) | 90 mm |
| Product Width (unpacked) | 62 mm |
| Product Depth (unpacked) | 84.5 mm |
| Product Weight (unpacked) | 190 g |
Accessories
| CJ1W-CIF11 | RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side | ||
| CJ1W-IC101 | Expansion I/O control unit, connects to right hand side of CPU | ||
| CJ1W-II101 | Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks | ||
| CJ1W-PA202 | Power supply unit, 100-240 VAC, output capacity: 14 W | ||
| CJ1W-PA205R | Power supply unit, 100-240 VAC, output capacity: 25 W, with RUN output | ||
| CJ1W-PD022 | Power supply unit, 24 VDC, output capacity: 19.6 W | ||
| CJ1W-PD025 | Power supply unit, 24 VDC, output capacity: 25 W | ||
| CJ2M-MD211 | Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs) | ||
| CJ2M-MD212 | Pulse I/O Module for CJ2M, PNP with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs) | ||
| CP1W-CIF01 | CP1 RS-232C (15 m max.) serial communication option board | ||
| CP1W-CIF11 | CP1 RS422/485 (50 m max.) serial communication option board | ||
| CP1W-CIF12-V1 | CP1 RS422/485 (isolated 500 m max.) serial communication option board | ||
| CP1W-CN221 | USB Programming cable, A-type male to B-type male, 1.8 m | ||
| CS1W-CIF31 | Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required | ||
| CS1W-CN223 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m | ||
| CS1W-CN713 | I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm | ||
| CXONE-AL01-EV4 | Single-user licence for CX-One V4.x software, for Windows 7 (32-bit/64-bit ) / Windows 8.1 (32-bit/64-bit ) / Windows 10 (32-bit/64-bit ) / Windows 11 (64-bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4) | ||
| HMC-EF183 | Flash memory card, 128MB | ||
| W4S1-05D | 5-port enhanced Ethernet switch | ||
| XS6W-6LSZH8SS200CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m | ||
| XS6W-6LSZH8SS300CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m | ||
| XS6W-6LSZH8SS500CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 5 m | ||
| XS6W-6LSZH8SS50CM-B | Ethernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 0.5 m | ||
| XW2Z-100K | I/O connection cable, MIL40 to MIL40, 1 m | ||
| XW2Z-200K | I/O connection cable, MIL40 to MIL40, 2 m | ||
| XW2Z-200S-V | Cable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m | ||
| XW2Z-200T | Cable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m |
