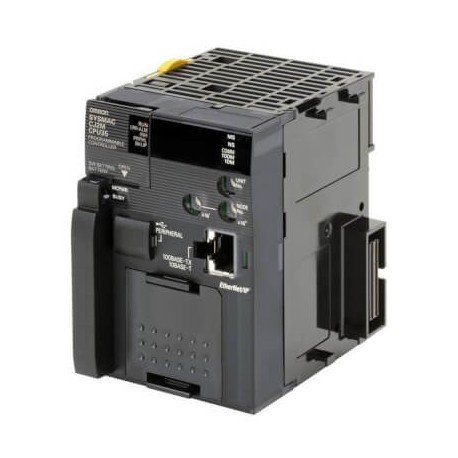

OMRON CJ2M-CPU31 CJ2M-CPU31 CJ2W9020R 392396 OMRON 5K Ethernet CPU steps View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2M-CPU31 CJ2W9020R 392396 OMRON 5K Ethernet CPU steps

CJ2M-CPU31

CJ2W9020R

CJ2MCPU31.1

OMRON

1 Pcs.

CPU Ethernet 5K steps CPU with built-in EtherNet/IP port, 5K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB pro CPU with built-in EtherNet/IP port, 5K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, option port for RS-232C/485, USB programming port, 3 expansion racks max.

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number CJ2M-CPU31 is an air cooled frequency converter designed to manage precise motor operations and speed adjustments in manufacturing plants. Such systems are integrated into automated production lines to optimize energy consumption and regulate mechanical output dynamically. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Program capacity: 25 K steps
  • Data memory capacity: 64 K words
  • Logic execution time: 0.04 µs
  • Max. number of expansion units: 40
  • Max. number of local I/O points: 2560
  • Number of built-in digital I/Os: 0
  • Communication port(s): EtherNet/IP, Ethernet TCP/IP, USB
  • Height: 90 mm
  • Width: 62 mm
  • Depth: 84.5 mm
  • Weight: 190 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No

More info

▲

Specifications

Program capacity25 K steps
Data memory capacity64 K words
Logic execution time0.04 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)EtherNet/IP, Ethernet TCP/IP, USB
Height90 mm
Width62 mm
Depth84.5 mm
Weight190 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CJ1W-IC101Expansion I/O control unit, connects to right hand side of CPU
CJ1W-II101Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks
CJ1W-PA202Power supply unit, 100-240 VAC, output capacity: 14 W
CJ1W-PA205RPower supply unit, 100-240 VAC, output capacity: 25 W, with RUN output
CJ1W-PD022Power supply unit, 24 VDC, output capacity: 19.6 W
CJ1W-PD025Power supply unit, 24 VDC, output capacity: 25 W
CJ2M-MD211Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
CJ2M-MD212Pulse I/O Module for CJ2M, PNP with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
CP1W-CIF01CP1 RS-232C (15 m max.) serial communication option board
CP1W-CIF11CP1 RS422/485 (50 m max.) serial communication option board
CP1W-CIF12-V1CP1 RS422/485 (isolated 500 m max.) serial communication option board
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CS1W-CIF31Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required
CS1W-CN223I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m
CS1W-CN713I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm
CXONE-AL01-EV4Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
W4S1-03B3-port basic Ethernet switch
W4S1-05D5-port enhanced Ethernet switch
XS6W-6LSZH8SS200CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 2 m
XS6W-6LSZH8SS300CM-BEthernet patch cable, F/UTP, Cat.6A, LSZH (Blue), 3 m
XW2D-40G6General-purpose I/O terminal block, MIL40 socket, M3 captive screws, 40 points
XW2R-P40G-TDIN-rail mounting terminal block, MIL40 socket, push-in clamp, 40 points, general-purpose
XW2Z-100KI/O connection cable, MIL40 to MIL40, 1 m
XW2Z-200KI/O connection cable, MIL40 to MIL40, 2 m
XW2Z-200S-VCable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
