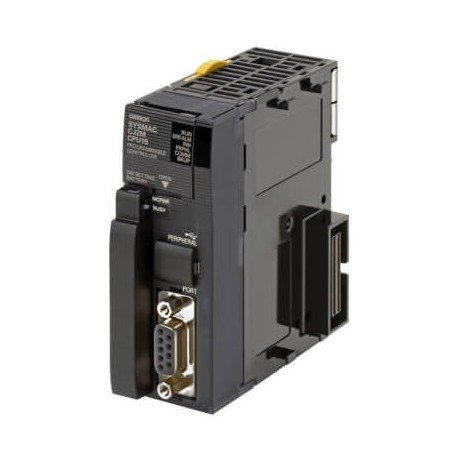

OMRON CJ2M-CPU13 CJ2M-CPU13 CJ2W9017R 392393 OMRON RS232C CPU 20K steps View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ2M-CPU13 CJ2W9017R 392393 OMRON RS232C CPU 20K steps

CJ2M-CPU13

CJ2W9017R

CJ2MCPU13.1

OMRON

1 Pcs.

CPU RS232C 20K steps CPU, 20K steps program, 32K words data memory, 32K words x 1 bank EM, 2560 I/O max, RS-232C serial port, USB programming port, 3 expansion racks max.

Automation > PLC CPU-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Modular CPU from Omron, part number CJ2M-CPU13, executes control instructions and manages large input/output data structures in high-performance automation networks. Industrial controllers coordinate complex machine motion and data logging across multiple expansion modules. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Program capacity: 40 K steps
  • Data memory capacity: 64 K words
  • Logic execution time: 0.04 µs
  • Max. number of expansion units: 40
  • Max. number of local I/O points: 2560
  • Number of built-in digital I/Os: 0
  • Communication port(s): Serial RS-232C, USB
  • Height: 90 mm
  • Width: 31 mm
  • Depth: 84.5 mm
  • Weight: 130 g
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No

More info

▲

Specifications

Program capacity40 K steps
Data memory capacity64 K words
Logic execution time0.04 µs
Max. number of expansion units40
Max. number of local I/O points2560
Number of built-in digital I/Os0
Communication port(s)Serial RS-232C, USB
Height90 mm
Width31 mm
Depth84.5 mm
Weight130 g

Accessories

CJ1W-CIF11RS-485 adaptor, 2 or 4 wire, connects directly to RS-232C 9-pin port for serial PLC link, screw terminals on RS-485 side
CJ1W-IC101Expansion I/O control unit, connects to right hand side of CPU
CJ1W-II101Expansion I/O interface unit, connects to left hand side of expansion I/O rack, up to 3 expansion racks
CJ1W-PA202Power supply unit, 100-240 VAC, output capacity: 14 W
CJ1W-PA205RPower supply unit, 100-240 VAC, output capacity: 25 W, with RUN output
CJ1W-PD022Power supply unit, 24 VDC, output capacity: 19.6 W
CJ1W-PD025Power supply unit, 24 VDC, output capacity: 25 W
CJ2M-MD211Pulse I/O Module for CJ2M, NPN with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
CJ2M-MD212Pulse I/O Module for CJ2M, PNP with 10 inputs (four interrupt/quickresponse and two high-speed counter inputs) and 6 outputs (two pulse and two PWM outputs)
CP1W-CN221USB Programming cable, A-type male to B-type male, 1.8 m
CS1W-CIF31Cable, PC USB to RS-232C converter cable, for Windows 98/ME/2000/XP, drivers included on CD-ROM, an Omron programming cable is also required
CS1W-CN223I/O expansion rack connecting cable for NJ/CJ/CS-series, 2 m
CS1W-CN713I/O expansion rack connecting cable for NJ/CJ/CS-series, 70 cm
CXONE-AL01-EV4Single-user licence for CX-One V4.x software, for Windows 2000/XP/Vista/Windows 7/8/10 (32 and 64 bit), (requires CDs or DVD, CXOne-CD-EV4, or CXOne-DVD-EV4)
HMC-EF183Flash memory card, 128MB
HMC-EF283Flash memory card, 256MB
HMC-EF583Flash memory card, 512MB
XW2D-40G6General-purpose I/O terminal block, MIL40 socket, M3 captive screws, 40 points
XW2R-P40G-TDIN-rail mounting terminal block, MIL40 socket, push-in clamp, 40 points, general-purpose
XW2Z-100KI/O connection cable, MIL40 to MIL40, 1 m
XW2Z-200KI/O connection cable, MIL40 to MIL40, 2 m
XW2Z-200S-VCable, RS-232C, for programming PLC or HMI 9-pin port from PC 9-pin port, 2 m
XW2Z-200TCable, RS-232C, for connecting NT HMI 9-pin port to PLC 9-pin port, 2 m
