View larger
Images are for illustrative purposes only. Please refer to data sheet for details

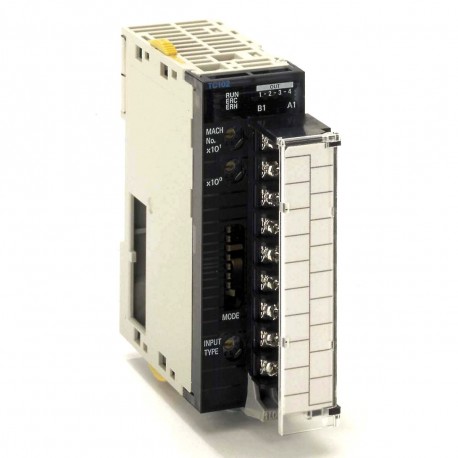

CJ1W-TC103 CJ1W0037M CJ1WTC103 OMRON Control module Temperature 2 Ties Pt100 NPN-Break
CJ1W-TC103
CJ1W0037M
CJ1WTC103
OMRON
1 Pcs.
Control module Temperature 2 Ties Pt100 NPN-Break
Temperature Control Module 2 Ties Pt100 NPN Breakage
Temperature control unit, Pt100 RTD inputs, transistor (NPN) output, 2 loops, heater burnout detection function
Automation > PLC analogue/digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of output voltage (EF008222) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Analogue input, thermocouple (EF003225) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Analogue input, voltage (EF003221) | No |
| Analogue output, voltage (EF003235) | No |
| Analogue input, current (EF003219) | No |
| Analogue input, resistor (EF003222) | No |
| Analogue output signal configurable (EF003236) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Analogue input signal configurable (EF003227) | Yes |
| Suitable for safety functions (EF001597) | No |
| Analogue output, current (EF003234) | No |
| Short-circuit protection, digital outputs available (EF003320) | No |
| Analogue input, resistor temperature (EF003224) | Yes |
| Number of analogue inputs (EF001994) | 2 |
| Number of digital outputs (EF001993) | 2 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 31 mm |
| Number of digital inputs (EF001992) | 0 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
| Output current at digital output (EF003218) | 0.1 A |
| Output voltage at digital output (EF003215) | 20.4 V |
