View larger
Images are for illustrative purposes only. Please refer to data sheet for details

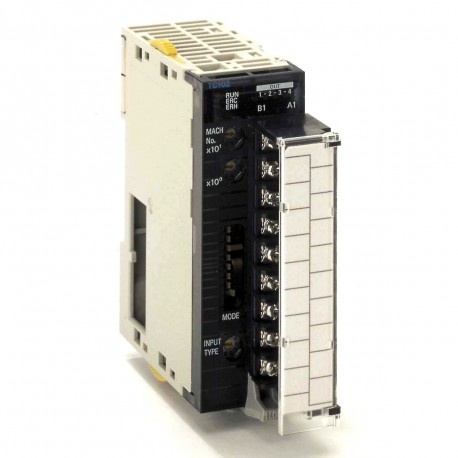

CJ1W-TC101 CJ1W0035D CJ1WTC101 OMRON Module Temperature Control 4 Loops Pt100 NPN
CJ1W-TC101
CJ1W0035D
CJ1WTC101
OMRON
1 Pcs.
Module Temperature Control 4 Loops Pt100 NPN
Temperature Control Module 4 Ties Pt100 NPN
Temperature control unit, Pt100 RTD inputs, transistor (NPN) output, 4 loops
Automation > PLC analogue/digital I/O-module
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| I/O system | CJ I/O Bus |
| Expansion unit type | Special I/O Unit |
| Type of module | Temperature control |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 4 |
| Digital output type | NPN, Voltage pulse |
| Number of analog inputs | 4 |
| Temperature input type | Pt100 |
| Linear analog input type | None |
| Number of analog outputs | 0 |
| Linear analog output type | None |
| Control function | Heat or cool |
| Heater burnout detection | |
| I/O connection type | Screw |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| Height | 90 mm |
| Width | 31 mm |
| Depth | 65 mm |
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Type of output voltage (EF008222) | DC |
| Performance level according to EN ISO 13849-1 (EF007399) | Level a |
| Type of digital output (EF003601) | Transistor |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | None |
| Voltage type (supply voltage) (EF002991) | DC |
| Explosion safety category for gas (EF003997) | None |
| Analogue input, thermocouple (EF003225) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Analogue input, voltage (EF003221) | No |
| Analogue output, voltage (EF003235) | No |
| Analogue input, current (EF003219) | No |
| Analogue input, resistor (EF003222) | No |
| Analogue output signal configurable (EF003236) | No |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Analogue input signal configurable (EF003227) | Yes |
| Suitable for safety functions (EF001597) | No |
| Analogue output, current (EF003234) | No |
| Short-circuit protection, digital outputs available (EF003320) | No |
| Analogue input, resistor temperature (EF003224) | Yes |
| Number of analogue inputs (EF001994) | 4 |
| Number of digital outputs (EF001993) | 4 |
| Number of analogue outputs (EF001995) | 0 |
| Width (EF000008) | 31 mm |
| Number of digital inputs (EF001992) | 0 |
| Height (EF000040) | 90 mm |
| Depth (EF000049) | 89 mm |
| Output current at digital output (EF003218) | 0.1 A |
| Output voltage at digital output (EF003215) | 20.4 V |
