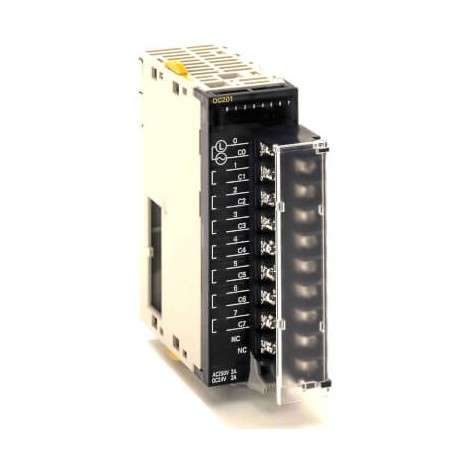

OMRON CJ1W-OC201 CJ1W-OC201 CJ1W9126M CJ1WOC201,1 OMRON Module 8 Relay Outputs Connector M3 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-OC201 CJ1W9126M CJ1WOC201,1 OMRON Module 8 Relay Outputs Connector M3

CJ1W-OC201

CJ1W9126M

CJ1WOC201.1

OMRON

1 Pcs.

Module 8 Relay Outputs - Connector M3 Digital output unit, 8 x relay outputs, 250 VAC/24 VDC, 2 A max, independent commons, screw terminal

Automation > PLC digital I/O-module
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron part number CJ1W-OC201 is a module 8 relay outputs connector M3 utilized to switch various field devices through reliable mechanical contact closures. Relay output modules accommodate both AC and DC load types, making them versatile components in industrial control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of voltage (input voltage) (EF003033): DC
  • Type of output voltage (EF008222): AC/DC
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Type of digital output (EF003601): Relay
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): DC
  • Digital inputs configurable (EF008516): No
  • Digital outputs configurable (EF008520): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Appendant operation agent (Ex ia) (EF004141): No
  • Redundancy (EF003156): No
  • Suitable for safety functions (EF001597): No
  • Short-circuit protection, outputs available (EF003203): No
  • Number of digital outputs (EF001993): 8
  • Output current (EF003202): 2 A
  • Width (EF000008): 31 mm

More info

▲
I/O systemCJ I/O BusExpansion unit typeBasic I/O UnitType of moduleDigital I/ONumber of digital inputs0Digital input typeNoneNumber of digital outputs8Digital output typeRelay NOPermitted voltage at output5-250 VOutput current2 AShort-circuit protected outputsI/O connection typeScrewNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals0Product Height (unpacked)90 mmProduct Width (unpacked)31 mmProduct Depth (unpacked)89 mmProduct Weight (unpacked)88 g
